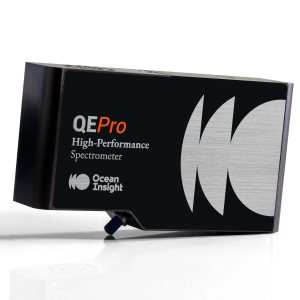

Ocean Optics QE Pro Scientific grade Spectrometer

  • Manufactured by: Ocean Insight

Quick Overview

The QE Pro is the scientific-grade spectrometer with high sensitivity and low stray light performance that make it ideal for a wide range of low light level applications such as fluorescence, DNA sequencing and Raman analysis. The enhanced QE Pro has an athermal design that promotes excellent spectrometer wavelength stability, triggering functio..

Contact us

Description

The QE Pro is the scientific-grade spectrometer with high sensitivity and low stray light performance that make it ideal for a wide range of low light level applications such as fluorescence, DNA sequencing and Raman analysis. The enhanced QE Pro has an athermal design that promotes excellent spectrometer wavelength stability, triggering functions for providing accurate timing and synchronization between the spectrometer and other devices and a replaceable slit design for added convenience. An extensive range of gratings offers flexibility in optimizing applications.



Robust Optical Bench



The QE Pro is the result of feedback from customers like you who appreciate high performance at a reasonable price and appreciate the flexibility of our modular approach to miniature spectroscopy. Consider some of the enhancements we’ve made to the QE Pro:

  • Availability of new gratings, selected for their optimal wavelength range and stray light performance characteristics
  • New optical bench components that more efficiently manipulate light for greater throughput and higher sensitivity
  • SMA 905 connector assembly with replaceable slit design for added convenience and excellent repeatability
  • Changes to the optical bench and its components that promote excellent spectrometer wavelength thermal stability



Back-thinned Detector



At the heart of the QE Pro is a Hamamatsu FFT-CCD detector distinguished by its high quantum efficiency (90% maximum) and low etalon characteristics. Unlike linear CCDs, the 2D area detector in the QE Pro allows us to bin (or sum) a vertical row of pixels, which offers significant improvement in the signal-to-noise ratio (>1000:1) and signal processing speed of the detector. What’s more, the TE-cooled (down to -15 °C) detector has low noise and low dark signal, which enables low-light-level detection and long integration times -- from 8 milliseconds to 15 minutes, with virtually no spectral distortion.



Ideal For Raman

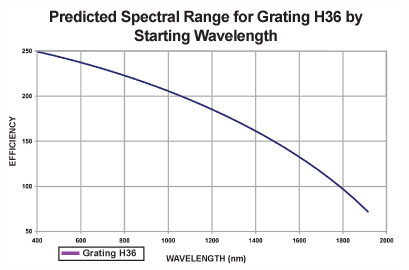

QE Pro is a great choice for fluorescence and low light level applications and is particularly well suited for modular Raman spectroscopy. For Raman, we offer a 900 mm-1 grating (#H36) that is blazed at 500 nm and has good response at the 532 and 785 nm laser illumination wavelengths typical of Raman.





Graphic 2 QE65PRO

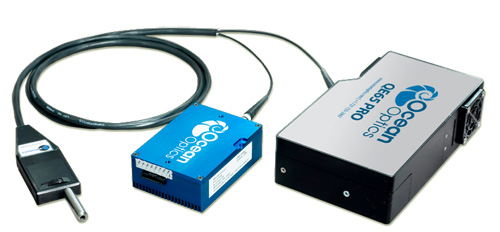

In this setup, the QE Pro anchors a modular, probe-based Raman system. You’ll note a bifurcated optical probe with one leg coupled to a 785 nm laser (in middle of photo) and the other to the spectrometer. Cuvette-based Raman analysis is also possible.



QE65 Pro Spectrometer
