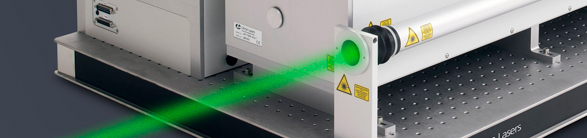

Ultra-High Energy Pulsed Nd:YAG Lasers

  • Manufactured by: Litron Lasers

Quick Overview

Models available with energies up to 3.5J at 1064nm and frequencies up to 50Hz.

The LP7000 lasers offer extremely high q-switched outputs at repetition rates of up to 50Hz.



General Features

  • Rugged Industrial Build
  • Up to 3.5J @ 106..

Description

Models available with energies up to 3.5J at 1064nm and frequencies up to 50Hz.

The LP7000 lasers offer extremely high q-switched outputs at repetition rates of up to 50Hz.



General Features

  • Rugged Industrial Build
  • Up to 3.5J @ 1064nm
  • Telescopic or Gaussian Resonators
  • Optional Seeder Package
  • All Harmonics to 5th Available
  • Full RS232 Software Control
  •

The lasers are provided in an oscillator, pre-amplifier, main-amplifier arrangement. The oscillator may be configured as a stable-telescopic resonator offering a low order multimode output with a smooth spatial and temporal profile, or as an unstable Gaussian-coupled resonator offering a single transverse mode output with slightly higher peak powers.


Lamp change is performed in a matter of minutes with no need for any re-alignment at all. An IP54 sealed case ensures that the laser is protected against the ingress of dirt and moisture when used in industrial environments.


For very narrow linewidths an option injection seeder is available.



Model
LPY
LPY
LPY
LPY
LPY
LPY

7864-10
7864-20
 7864-30
 7864-50
7875-10
7875-20
Repetition Rate (Hz)
10
20
30
50
10
20
Output Energy (mJ)
1064nm
2750
2250
2000
1400
3500
2750
532nm
1400
1100
1000
700
1750
1350
355nm
600
480
450
250
700
600
266nm
250
140
95
80
275
170
