THz Measurement & Detectors

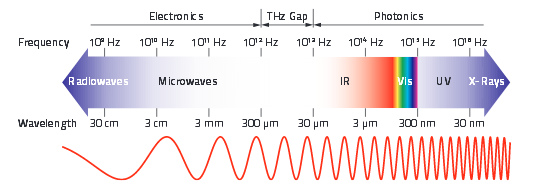

The THz portion of the electromagnetic spectrum fills the gap between the far infrared and the microwaves. More precisely, it is nestled between the high-frequency edge of the microwave band, 300 gigahertz (3×1011 Hz), and the long-wavelength edge of far-infrared light, 3000 GHz (3×1012Hz or 3 THz). In wavelengths, this range corresponds to 0.1 mm (or 100 μm) infrared to 1.0 mm microwave. The THz band is set in the region where electromagnetic physics can best be described by its wave-like characteristics (microwave) and its particle-like characteristics (infrared).

Terrahertz

Our THz sensors are pyroelectric-based and can thus be used very easily, and at room temperature. You can choose either a standalone head with on-board electronics or go with our T-Rad meter and a separate sensor. We also have small discrete terahertz detectors in TO5/TO8 packages.

GMP: Gentec EO Catalog

Gentec EO Catalog 2024(50Mo)

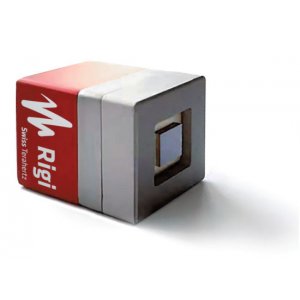

Microbolometer - Uncooled real-time THz imager

Microbolometer - Uncooled real-time THz imager

Manufactured by: Swiss Terahertz

  Specifications of the RIGI cameras series: • Detector: Uncooled FPA microbolometer array • Pitch: Varies starting from 15μm • Array size: Varies from 80 x 80 pixels to.....
More Information

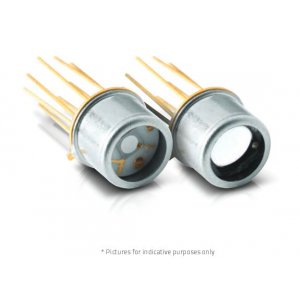

QS-THZ TO5 and TO8 packages Detector

QS-THZ TO5 and TO8 packages Detector

Manufactured by: Gentec E-O

Features Relative Measurements from 0.1 to 30 THz Broadband, room temperature operation, easier to use and less expensive than a Golay cell Easy to Integrate Format TO5 and TO8 packages make the.....
More Information

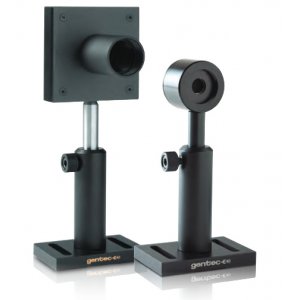

THZ-D serie - THz detector for laser power meter

THZ-D serie - THz detector for laser power meter

Manufactured by: Gentec E-O

Features Relative Measurements from 0.1 to 30 THz Broadband, room temperature operation, easier to use and less expensive than a Golay cell   Flat Spectral Response Get the best precision.....
More Information

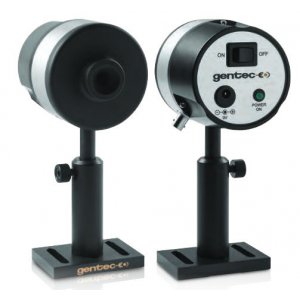

THZ-I-BNC Serie - THz Detector with Integrated Analog Module

THZ-I-BNC Serie - THz Detector with Integrated Analog Module

Manufactured by: Gentec E-O

Features Relative Measurements from 0.1 to 30 Terahertz Broadband, room temperature operation, easier to use and less expensive than a Golay cell Measure Power from nW to mW With state of the art.....
More Information

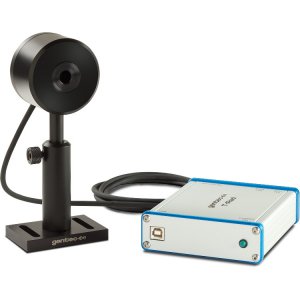

THZ-B Serie - Terahertz measurement by computer

THZ-B Serie - Terahertz measurement by computer

Manufactured by: Gentec E-O

Features Relative Measurements from 0.1 to 30 THz Broadband, room temperature operation, easier to use and less expensive than a Golay cell Wide Dynamic Range from nW to mW with state of the art.....
More Information
