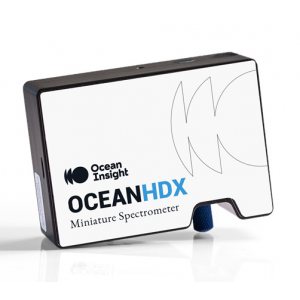

High Definition Miniature Spectrometer - Ocean HDX

  • Manufactured by: Ocean Optics

Quick Overview

This High Definition Optics (HDX) spectrometer offers best quality results in a small-bench packaging in the 200-1100 nm spectral range.



The Ocean HDX is a small spectrometer which offers high resolution, great throughput and low stray light for reliable results. It offers great thermal stability even in challenging ..

Description

This High Definition Optics (HDX) spectrometer offers best quality results in a small-bench packaging in the 200-1100 nm spectral range.



The Ocean HDX is a small spectrometer which offers high resolution, great throughput and low stray light for reliable results. It offers great thermal stability even in challenging conditions (+/-0.5 pixels over 0-45°C).



The x-platform electronics fit any application or environment and include onboard memory as well as processing functions to speed up analysis while never missing a date point. The fast and versatile communications include Gigabit Ethernet, SPI and Wi-Fi.



This compact and robust optical-bench spectrometer with performance and communications is ideal for integrated, industrial and research applications.



Specifications (Preliminary)


Detector: Back-thinned CCD
Spectral range: 200-1100 nm
Optical Resolution: 0.61-0.72 nm FWHM*
Integration time: 6 ms – 10 seconds
Dynamic range: 10,000:1
Throughput: f/4 cone on detector with 300 μm fiber
Stray light: >3 AU
Thermal stability: +/-0.5 pixels over 0-45 °C
Communications: USB, Gigabit Ethernet, Wi-Fi, SPI, RS232
Operating temp: 0-45 °C
Weight: 400 g
Size (millimeters): 88.9 x 63.5 x 52.4

*Average over the entire spectral range using 10 μm slit
