Femtosecond Yb Oscillators - Flint - Light Conversion Laser

  • Manufactured by: Light Conversion

Quick Overview

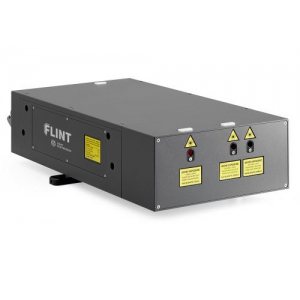

The FLINT oscillator is based on Yb crystal pumped by a high brightness laser diode module. Generation of femtosecond pulses is provided by Kerr lens mode-locking. Once started, mode-locking remains stable over a long period of time and is immune to minor mechanical impact. Piezo-actuator can be implemented in customized oscillators in order to ..

Description

The FLINT oscillator is based on Yb crystal pumped by a high brightness laser diode module. Generation of femtosecond pulses is provided by Kerr lens mode-locking. Once started, mode-locking remains stable over a long period of time and is immune to minor mechanical impact. Piezo-actuator can be implemented in customized oscillators in order to control the cavity length. FLINT oscillator can also be equipped with a Carrier Envelope Phase (CEP) stabilization system.



Features



- Sub‑40 fs without any additional pulse compressor
- 250 nJ pulse energy
- 20 W output power
- 76 MHz is standard
- No amplified spontaneous emission
- Rugged, industrial-grade mechanical design
- Automated second harmonic generator
- Optional CEP stabilization
- Possibility to lock to external clock



Datasheet



pdf_logo
Flint Oscillators datasheet - PDF 1.7 Meg

Ask a question about the Femtosecond Yb Oscillators - Flint - Light Conversion Laser





Manufacturer Informations

Light Conversion
