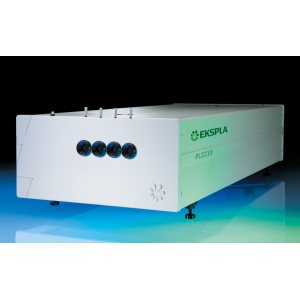

Diode Pumped Picosecond kHz Pulsed Nd:YAG Lasers - PL2210 series

  • Manufactured by: Ekspla

Quick Overview

PL2210 series diode-pumped, air-cooled, mode-locked Nd:YAG lasers provide picosecond pulses at a kilohertz pulse repetition rate.
Short pulse duration, excellent pulse-to-pulse stability, superior beam quality makes PL2210 series diode pumped picosecond lasers well suited for many applications, including material processing, time-resolved..

Contact us

Description

PL2210 series diode-pumped, air-cooled, mode-locked Nd:YAG lasers provide picosecond pulses at a kilohertz pulse repetition rate.
Short pulse duration, excellent pulse-to-pulse stability, superior beam quality makes PL2210 series diode pumped picosecond lasers well suited for many applications, including material processing, time-resolved spectroscopy, optical parametric generator pumping, and other tasks.



FLEXIBLE DESIGN
PL2210 series lasers offer a number of optional items that extend the capabilities of the laser. A pulse picker option allows control of the pulse repetition rate of the laser and operation in single-shot mode. The repetition rate and timing of pulses can be locked to an external RF source (with –PLL option) or other ultrafast laser system (with –FS option). The laser provides a triggering pulse for synchronization of the customer‘s equipment. A low jitter SYNC OUT pulse has a lead up to 500 ns that can be adjusted in ~0.25 ns steps from a PC. Up to 400 μs lead of triggering pulse is available as a PRETRIG feature that is designed to provide precise, very low jitter trigger pulses for a streak camera.



BUILT-IN HARMONIC GENERATORS
Motorised switching of wavelength for PL2210A. Non-linear crystals mounted in temperature stabilized heaters are used for second, third and fourth high spectral purity harmonic generation.



SIMPLE AND CONVENIENT LASER CONTROL
For customer convenience the laser can be operated from master device or personal computer through USB (VCP, ASCII commands), RS232 (ASCII commands), LAN (REST API) or RS232 (ASCII commands), LAN (REST API) depending on the system configuration or from remote control pad with backlit display that is easy to read even while wearing laser safety glasses.



Features



- High pulse energy at kHz rates
- Diode pumped solid state design
- Air cooled – external water supply is not required (for PL2210A-1k only)
- Turn-key operation
- Low maintenance costs
- Optional streak camera triggering pulse with <10 ps rms jitter
- Remote control pad
- PC control
- Optional temperature stabilized second, third and fourth harmonic generators



Applications



- Time resolved fluorescence (including streak camera measurements), pump-probe spectroscopy
- OPG/OPA/OPO pumping
- Remote Laser Sensing
- Other spectroscopic and nonlinear optics applications

Ask a question about the Diode Pumped Picosecond kHz Pulsed Nd:YAG Lasers - PL2210 series





Manufacturer Informations

Ekspla

    EKSPLA is manufacturer of lasers, laser systems and laser components for R&D and industrial applications.

    Customers like CERN, NASA, ELI, Max Planck Institutes, Cambridge University, Massachusetts Institute of Technology and Japan University of Science showed trust in Ekspla lasers & systems.
