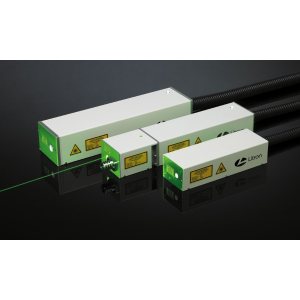

Ultra Compact Pulsed Nd:YAG Lasers - Nano L Series

  • Manufactured by: Litron Lasers

Quick Overview

Compact and rugged Q-switched pulsed Nd:YAG lasers.

Energies available up to 340mJ at 1064nm and repetition rates up to 100Hz. Harmonics available up to 266nm.

The Nano L laser opens up new applications with its compact size and superior performance. The laser can be run at pulse repetition ..

Description

Compact and rugged Q-switched pulsed Nd:YAG lasers.

Energies available up to 340mJ at 1064nm and repetition rates up to 100Hz. Harmonics available up to 266nm.

The Nano L laser opens up new applications with its compact size and superior performance. The laser can be run at pulse repetition rates of up to 100Hz making it extremely useful in imaging applications. The strong construction through elegant design lends itself to use in demanding industrial applications. With a monolithic resonator housing machined out of solid aluminium, ultra-stable mirror mounts and a stainless steel pump-housing with close couple ceramic reflectors, beam quality is achieved through build quality.
The Nano L can be configured with either a stable or Gaussian coupled resonator. An intra-cavity aperture can also be fitted to give a true TEMoo output. The laser can be run at pulse repetition rates of up to 100Hz making it extremely useful in imaging applications and material processing applications alike.
Through the addition of modular ‘bolt-on’ modules, the full range of harmonics to the fifth can be realised.
For industrial applications power supplies with IGBT switching are offered. These give rise to a higher efficiency and a long lamp lifetime, typically greater than 100 million shots. The power supply and integrated cooler is available as either a stand-alone unit or as a 19” rackmount unit.

GENERAL FEATURES

  • Output energies up to 320mJ
  • 100Hz Model with 90mJ output
  • Electronically verified safety shutter
  • 2nd, 3rd, 4th and 5th harmonics
  • Monolithic Laser resonator
  • Rugged and stable

APPLICATIONS INCLUDE

  • PIV
  • LIBS
  • Spectroscopy
  • LIDAR
  • ESPI



Model
Nano L
Nano L
Nano L
Nano L
Nano L
Nano L
Nano L
Stable resonators
340-10
 200-10
290-20 200-20
200-30
 150-50
90-100
Repetition Rate (Hz)
0-10
0-10
0-20
0-20
0-30
0-50
0-100
Output Energy (mJ)


1064nm
340
200
290
200
200
150
90
532nm
200
110
145
110
110
80
50
355nm
45
40
50
40
40
25
15
266nm
30
25
30
25
25
18
10

pdf_logo
Litron Nano Serie Brochure - PDF 1.4 Meg
