EtherCAT Master Multi-Axis Motion Controllers, 1-8 axes - GMP SA

  • Manufactured by: Galil Motion Control

Quick Overview

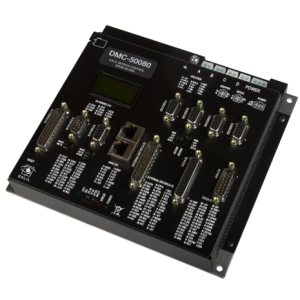

The DMC-500x0 EtherCAT Controller is Galil Motion Control's newest entry in its latest generation of digital motion controllers. Incorporating all of the features of our flagship Accelera series controller and designed with compatibility and flexibility in mind, the DMC-500x0 allows integration of remote EtherCAT drives into new and existing..

Description

The DMC-500x0 EtherCAT Controller is Galil Motion Control's newest entry in its latest generation of digital motion controllers. Incorporating all of the features of our flagship Accelera series controller and designed with compatibility and flexibility in mind, the DMC-500x0 allows integration of remote EtherCAT drives into new and existing applications with just a handful of configuration commands.





The DMC-500x0 is offered in 1 through 8 axis formats. Axes 1 - 4 can be configured as either local or EtherCAT drives while axes 5 – 8 can be configured for additional EtherCAT drives. Unique to the motion control industry, this ability to mix and match local and EtherCAT drives on the same controller provides increased flexibility for any application. In addition, the DMC-500x0 is fully compatible with Galil’s internal servo and stepper motor amplifiers as well as third party external drives.



Once enabled, an EtherCAT axis replaces a local axis and can be controlled in the same manner. This transparency means access to Galil’s full library of coordinated motion functions that can be mapped to any combination of local and EtherCAT axes. Standard modes of motion include Jogging, Point to Point, Electronic Gearing and Cam, Linear and Vector Interpolation, Contour, and PVT modes. EtherCAT drives can be configured in software to close the PID control loop on the controller or on the drive. In the first mode, torque commands are sent to the motor amplifier after closing the control loop using Galil’s on board PID control algorithm. This mode allows access to the Galil’s standard PID control loop features, including advanced PID compensation, velocity feedforward, acceleration feedforward, integrator limits, notch filter, low pass filter and backlash compensation. In the second mode, the servo control loop is closed on the EtherCAT drive with the Galil controller sending motion profile commands at rates of up to 2.5 kHz on a 1-4 axis controller.



Standard opto-isolated inputs for each local axis include a forward limit, reverse limit and homing input. The controller also features 8 uncommitted opto-isolated inputs and 8 uncommitted opto-isolated high power outputs. The DMC-500x0 includes 8 uncommitted analog inputs, allowing the controller to interface with analog sensors such as joysticks and temperature sensors. Inputs from two separate encoders are available for each local servo axis. Local auxiliary encoder inputs are also available for axes configured for EtherCAT, providing access to Galil’s dual feedback PID control loop.



Features


- Configurable controller for up to 8 axes of EtherCAT Master with any of the first 4 axes for local control or EtherCAT Master
- 10/100BASE-T Ethernet port; (1) EtherCAT Port; (2) RS232 ports up to 115 kbaud
- Available with internal, multi-axis servo or stepper drives. Or, connect to conventional external drives (only first four axes)
- For local axes, accepts up to 22 million counts per second of quadrature encoder for servos; Outputs up to 6 MHz for steppers; EtherCAT command speed up to 1 billion counts per second
-. Sample times as low as 375 microseconds for 1-4 axes and 750 microseconds for 5-8 axes
- First four axes, advanced PID compensation with velocity and acceleration feedforward, integration limits, notch filter and low-pass filter
- Modes of motion include jogging, point-to-point positioning, position tracking, contouring, linear and circular interpolation, electronic gearing, ECAM, and PVT
- Ellipse scaling, slow-down around corners, infinite segment feed and feed rate override
- Multitasking for concurrent execution of up to eight application programs
- Non-volatile memory for application programs (4000 Lines), variables (510), and arrays (24000)
- Dual encoders for every local servo axis
- Optically isolated home input and forward and reverse limits for every local axis; Uses EtherCAT drive for home and limit switches
- 2 line x 8 character LCD
- Accepts single 20 - 80 VDC input
- Communication drivers for Windows and Linux
- Custom hardware and firmware options available



pdf_logo
Datasheet Ethercat 5000 - PDF 3.6 Meg
