NA Series NEMA Linear Actuators

  • Manufactured by: Zaber Technologies

Quick Overview

These linear actuators based on standard Nema stepper motors offer finer resolution, higher thrust, higher speed, and longer lifetime when compared our T-LA series of linear actuators. The actuators include 30cm of cable wired to a mini-din 8 connector for use with our T-CD series Chopper Drive controller (shown above driving an NA11B-30 actuato..

Contact us

Description

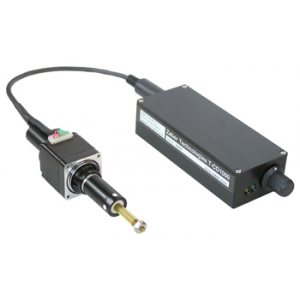

These linear actuators based on standard Nema stepper motors offer finer resolution, higher thrust, higher speed, and longer lifetime when compared our T-LA series of linear actuators. The actuators include 30cm of cable wired to a mini-din 8 connector for use with our T-CD series Chopper Drive controller (shown above driving an NA11B-30 actuator) which must be purchased separately. The actuators have a built in magnetic home sensor. In addition to the listed actuators, we have larger Nema size 17 and 23 actuators available in the same ranges of travel. Size 23 offers up to 200 lb force. We are in the process of adding these to our website. In the meantime, please contact us for more details if you are interested in higher thrust.



When used with our T-CD series Chopper Drive controller as shown at right, these actuators achieve resolutions down to 0.05 µm, with travels up to 60 mm travel. Controllers can be daisy chained with each other and all Zaber T-series products, to a single serial or usb port.



To control actuator position, simply transmit the unit number of the actuator you want to move, a simple move command and the position desired. After the move, the controller will report its position. For a detailed list of available commands see the user's manual.



A knob at the end of the controller permits smooth manual control. Knob position controls actuator velocity. During a manual move the actuator constantly transmits its position so the controlling computer can track it.



Specification Device  Value

Range

NAxxx-16
NAxxx-30
NAxxx-60

16 mm

30 mm
60 mm
Motor Steps per Rev All 200
Step Resolution NA08A-xx
NA08B-xx
NA11B-xx
NA14B-xx		 3.048 um/step
6.096 um/step
6.35 um/step
6.096 um/step

Finest Micro-step Resolution

(with T-CD controller set to 128
 micro-steps per step)

NA08A-xx
NA08B-xx
NA11B-xx
NA14B-xx

0.0234 um
0.0476 um
0.0496 um
0.0476 um

Repeatability

All

< 0.4 um

Accuracy

NAxxx-16
NAxxx-30
NAxxx-60

< 8 um

< 10 um
< 12 um

Backlash

All

< 2 um

Maximum Thrust *

NA08A-xx
NA08B-xx
NA11B-xx

NA14B-xx

45 N (10 lb)
30 N (6.7 lb)
80 N (18 lb)
225 N (50 lb)

Maximum Speed *

NA08A-xx
NA08B-xx
NA11B-xx

NA14B-xx

20 mm/s
40 mm/s
20 mm/s
10 mm/s

Mechanical drive system

All

precision ground leadscrew

Home sensor

All

magnetic "hall effect" sensor

Motor Type

NA08x-xx
NA11x-xx
NA14x-xx

2 phase Nema 08, 0.24A/phase
2 phase Nema 11, 0.42A/phase
2 phase Nema 14, 0.56A/phase

Connector

All

Minidin 8 male

Mounting Interface

NA08x-xx


NA11x-xx




NA14x-xx

4 tapped holes M2x0.4 on 15.4mm centers or
9mm dia smooth shank which can be
clamped as a means of mounting.
4 tapped holes M2.5x0.45 on 23mm centers or
14mm dia smooth shank which can be
clamped as a means of mounting.
4 tapped holes M3x0.5 on 26mm centers or
15mm dia smooth shank which can be
clamped as a means of mounting.

Plunger Interface

NA08x-xx

NA11x-xx

NA14x-xx

#4-40 UNC-2A threaded tip with nut.

6 mm of thread to shoulder.
M3 x 0.5 threaded tip with nut.

5.7mm of thread to shoulder.
M4 x 0.7 threaded tip with nut.

6.7mm of thread to shoulder.





*

Thrust is a function of speed. The values given are maximums and cannot both be achieved simultaneously.
