Optical Mini Isolators - 780 nm, 1064 nm and 1550nm

  • Manufactured by: Innovation Photonics

Quick Overview

FIO-D Series “Mini” Isolators (“aspirin tablet”) are designed for applications requiring minimum size.


To achieve the very small size, we utilize BIG (bismuth-iron garnet) film as the magneto-optic material and dichroic Very Low Power Polarizers. VLP Polarizers absor the unwanted polarization vector and ..

Description

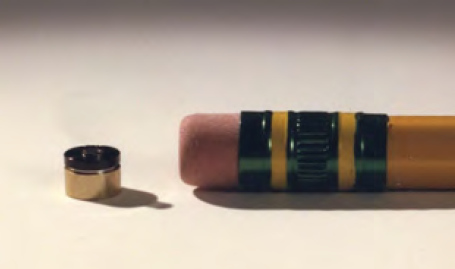

FIO-D Series “Mini” Isolators (“aspirin tablet”) are designed for applications requiring minimum size.


To achieve the very small size, we utilize BIG (bismuth-iron garnet) film as the magneto-optic material and dichroic Very Low Power Polarizers. VLP Polarizers absor the unwanted polarization vector and are therefore limited in laser power capability.



Achieving maximum isolation and transmission requires that we set our Mini Isolators to the exact laser wavelength of use. Once set, Mini Isolators cannot be readjusted thereafter.





Number Aperture Transmittance Isolation
FIO-D-780 2.0 mm ~ 53 % > 30 dB (1,000:1)
FIO-D-1064 2.0 mm ~ 75 % > 30 dB (1,000:1)
FIO-D-1550 2.0 mm ~ 96 % > 30 dB (1,000:1)
