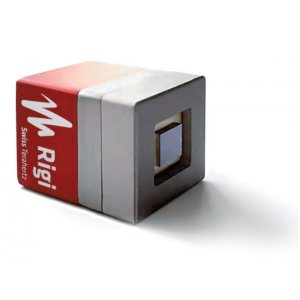

Microbolometer - Uncooled real-time THz imager

  • Manufactured by: Swiss Terahertz

Quick Overview



Specifications of the RIGI cameras series:


• Detector: Uncooled FPA microbolometer array
• Pitch: Varies starting from 15μm
• Array size: Varies from 80 x 80 pixels to
1920x1080 pixels
• NEP per pixel : < 1.5 pW/Hz at 4.6 THz
• S..

Description



Specifications of the RIGI cameras series:


• Detector: Uncooled FPA microbolometer array
• Pitch: Varies starting from 15μm
• Array size: Varies from 80 x 80 pixels to
1920x1080 pixels
• NEP per pixel : < 1.5 pW/Hz at 4.6 THz
• Sensitivity: < 1 THz: 18 THz
• Frame rate: 10Hz, 30Hz, 60Hz
• Power supply: USB-powered
• Signal Output : Digital: USB 3.0
• Weight : < 200g (small models)
• Dimensions : Approx. W 3cm x H 3cm x D 4cm
(small models)





pdf_logo
Rigi THz Camera - PDF 2.4 Meg

Ask a question about the Microbolometer - Uncooled real-time THz imager





Manufacturer Informations

Swiss Terahertz

    Swiss Terahertz brings the world top technologies in ultra-intense terahertz systems for nonlinear spectroscopy.
