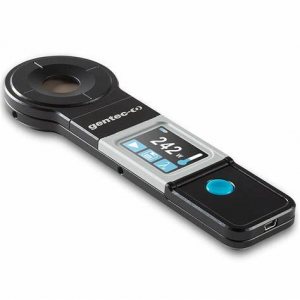

Portable laser power meter, up to 250 W - Gentec PRONTO-250-FLEX

  • Manufactured by: Gentec E-O

Quick Overview

Portable laser power meter for up to 250 W. Includes 3 measurement modes : SSP, CWP and SSE.



The PRONTO-250-FLEX offers three calibration options so you only pay for what you need:

- Default calibration “Y”: for visible to NIR wavelengths (248 nm to 2.5 µm)<..

Contact us

Description

Portable laser power meter for up to 250 W. Includes 3 measurement modes : SSP, CWP and SSE.



The PRONTO-250-FLEX offers three calibration options so you only pay for what you need:

- Default calibration “Y”: for visible to NIR wavelengths (248 nm to 2.5 µm)

- Additional calibration “C”: for CO2 lasers (10.6 µm)

- Additional calibration “E”: for energy measurements with ± 5 % accuracy




POCKET-SIZE


This mid to high power handheld probe is so compact it fits in your pocket!

EASY-TO-USE



MEASUREMENT CAPABILITIES
Maximum average power: 250 W
Minimum average power: 0.5 W
Noise equivalent power: 10 mW
Spectral range: 0.193 - 20 μm
Typical rise time: 1.5 s
Power calibration uncertainty: ±3 %
Exposure time: 5 s



MEASUREMENT CAPABILITIES (ENERGY MODE)
Maximum measurable energy: 25 J
Noise equivalent energy: 60 mJ
Minimum repetition period: 4 s
Maximum pulse width: 88 ms
Energy calibration uncertainty: ±5 %



CONTINUOUS POWER MODE
Maximum average power (continuous): 8 W
Response time: 1.5 s


DAMAGE THRESHOLDS
Maximum average power density: 45 kW/cm²
Maximum allowable casing temperature: 65 °C
