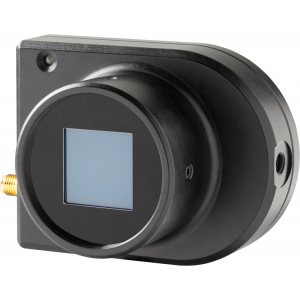

Laser Beam Diagnostic - Beamage-4M Focus

  • Manufactured by: Gentec E-O

Quick Overview

The Beamage-4M-FOCUS is specifically  designed  for  extra  large  beams.  Its bounded fiber optic taper  extends the sensor  surface to 20.5 x 20.5 mm effective size.

Most importantly the  innovative  and  improved PC-Beamage software  is  simple  and  intuitiv..

Description

The Beamage-4M-FOCUS is specifically  designed  for  extra  large  beams.  Its bounded fiber optic taper  extends the sensor  surface to 20.5 x 20.5 mm effective size.

Most importantly the  innovative  and  improved PC-Beamage software  is  simple  and  intuitive  to  any  new  or  expert  beam profiling user


Specifications:



- Sensor Technology: CMOS without coverglass

- Sensor Size: 20.5mmx20.5mm effective size

- Sensor Area: 4.2cm2 effective optical aperture

- Pixel Count: 4.2 MPixels

- Pixel H x V: 2048 x 2048

- Optical Format: 1'
- Pixel Dimension: 12 μm effective size

- Shutter Type: Global

- Wavelength Range: 350-1150 nm

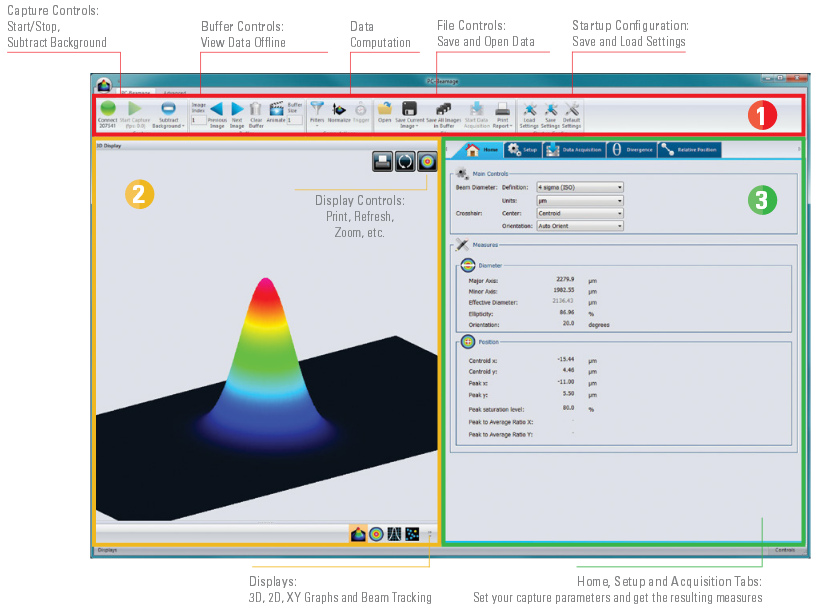

beam image software



pdf_logo
Datasheet - PDF 1 Meg
