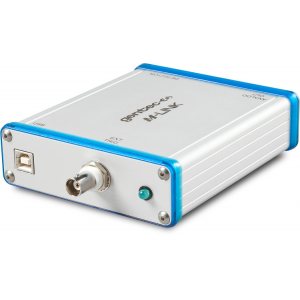

M-LINK, Universal Laser Power & Energy Meter

  • Manufactured by: Gentec E-O

Quick Overview

This PC-Based meter has the advantage of being compatible with every type of head available (thermopiles, pyroelectrics and photo detectors), in both power and energy modes. The M-LINK is the best meter for precise low energy measurements, down to the femtojoule level, thanks to its unique noise suppression algo..

Description

This PC-Based meter has the advantage of being compatible with every type of head available (thermopiles, pyroelectrics and photo detectors), in both power and energy modes. The M-LINK is the best meter for precise low energy measurements, down to the femtojoule level, thanks to its unique noise suppression algorithm.



The new M-LINK is USB port-powered and is controlled via a unique LabView interface that presents many displays and measurement features. The meter also has an external trigger to help you synchronize it with your pulsed laser.




Main Specifications:

  • Power Range: 4 pW to 30 kW
  • Energy Range: 30 fJ to 30 kJ
  • Max Repetition Rate: 1000 Hz with time stamp
  • Data Display: Real Time, Scope, Averaging, Statistics and Tuning Needle



datasheet pdf
Datasheet (PDF File - 0.5 Meg)



Ask a question about the M-LINK, Universal Laser Power & Energy Meter





Manufacturer Informations

Gentec E-O

    With a 50 year track record of innovation and providing quality solutions for laser power and energy measurement applications from the factory to the hospital and laboratory, Gentec-EO stands ready to serve you now and in the future.
