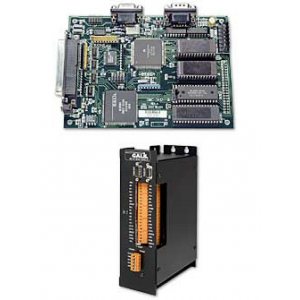

DMC 1412 - RS232 motion controller - 1 axes card or box

  • Manufactured by: Galil Motion Control

Quick Overview

The DMC-1412 is a member of the Econo Series, Galil's latest generation of single-axis motion controllers which are half the size and half the price of multi-axis controllers. This controller is available as a single axis card or packaged in a rugged enclosure. The DMC-1414 option is packaged with an internal servo amplifier suitable for dri..

Contact us

Description

The DMC-1412 is a member of the Econo Series, Galil's latest generation of single-axis motion controllers which are half the size and half the price of multi-axis controllers. This controller is available as a single axis card or packaged in a rugged enclosure. The DMC-1414 option is packaged with an internal servo amplifier suitable for driving brush-type servomotors up to 60 Volts, 6 Amps. The DMC-1412 can handle the most demanding applications with such features as an extra encoder input for electronic gearing, program memory with multitasking, uncommitted I/O and user-selectable stepper or servo motor control. Modes of motion include point-to-point positioning, jogging, contouring, electronic gearing and ecam. Programming the DMC-1412 is simplified with two-letter, intuitive commands and a full set of software tools such as WSDK for servo tuning and analysis, ActiveX Tool Kit for Visual Basic users and a C-Programmers Tool Kit. As a member of the Econo Series, the DMC-1412 does not provide uncommitted analog inputs and is not optoisolated. If you need these features, select the DMC-2110 Optima series stand-alone controller.

Features

  • Two daisy-chainable RS232 ports up to 38.4K baud
  • DMC-1412 available as card-level or box-level product. DMC-1414 includes a PWM amplifier for driving brush-type motors up to 60V, 6A
  • Accepts up to 8 MHz encoder frequencies for servos and 2 MHz for steppers
  • Advanced PID compensation with Velocity and Acceleration feedforward and integration limits
  • Modes of motion include jogging, point-to-point positioning, contouring, electronic gearing and ECAM
  • Multitasking for concurrent execution of two application programs
  • Memory for application programs, variables and arrays
  • Accepts inputs from two encoders for gearing or dual-loop applications
  • 7 Uncommitted digital inputs, 3 digital outputs
  • High Speed position capture
  • Forward and reverse limits and home input
  • Sinusoidal commutation for brushless servo motors
  • 37-Pin D-type connector for DMC-1412; screw terminals for DMC-1414
  • Custom hardware and firmware options available
