Multispectral Sensors - PixelSensor™

  • Manufactured by: Ocean Insight

Quick Overview

PixelSensor™ multispectral sensors use exclusive on-chip filtering to pack up to 8 wavelength selective photodiodes into a compact 9x9mm array format for simpler and smaller optical devices. One PixelSensor™ replaces multiple components, helping OEMs shrink multi-wavelength instruments for applications including in vitro diagnostics,..

Description

PixelSensor™ multispectral sensors use exclusive on-chip filtering to pack up to 8 wavelength selective photodiodes into a compact 9x9mm array format for simpler and smaller optical devices. One PixelSensor™ replaces multiple components, helping OEMs shrink multi-wavelength instruments for applications including in vitro diagnostics, biochemical assays and colorimetry applications.

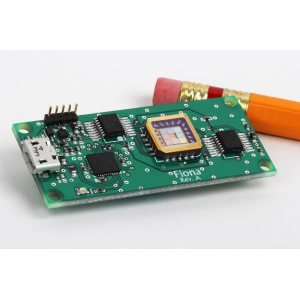

The unique, wafer-level optical filters split the spectrum into 8 discrete color bands and suppress out-of-band background light, improving contrast and sensitivity. Customized OEM versions are available with user-defined spectral bands. With narrow band VIS-NIR selectivity, the sensor arrays are available both with and without an OEM electronics board. The OEM electronics board is designed for easy integration into customers’ analytical equipment and provides a smaller footprint (45.72 x 21.34mm) and faster time-to-market than traditional sensor technology, offering a cost-effective solution. The parallel channel design results in no moving parts and faster measurements than discrete optics designs and spectrometers. Designed for low noise and fast response time, the 20-pin LCC package can be surface or socket mounted.



The optional PixelSensor™ OEM electronics board and accessories and simple-to-use software interface provide designers with tools for rapid prototyping and development – to help quickly move your device from concept to scalable production.



Benefits


8-band sensor array in 9x9mm footprint
Available with or without OEM electronics board (45.72×21.34mm)
Simplified optics for miniaturized devices
Narrow band VIS-NIR selectivity (400-1000nm)



Customizable Options


Optical filter specification
Number of channels
Package type
Breakout board & light guide tube accessories



Applications


Biomedical instrumentation
Color meters & monitors
Industrial sorting & sensing
Portable optical sensors
OEM multispectral devices



pdf_logo
Datasheet - PDF 1.3 Meg

Ask a question about the Multispectral Sensors - PixelSensor™





Manufacturer Informations

    Ocean Optics, a leader in miniature spectroscopy and multispectral sensing, is now Ocean Insight.

    Ocean Insight is part of Halma plc, a global group of life-saving technology companies.
