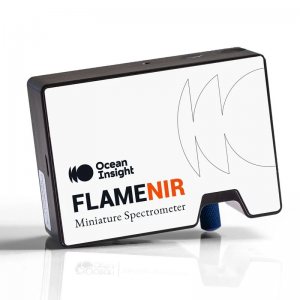

Flame NIR Spectrometer

  • Manufactured by: Ocean Insight

Quick Overview

Combining the small size of the Flame optical bench with a new uncooled InGaAs detector, the Flame-NIR opens a new frontier in NIR spectroscopy. Without thermoelectric cooling, the Flame-NIR’s power consumption needs are ultra-low and make the Flame-NIR ideal for integration into handheld and portable systems.



Th..

Contact us

Description

Combining the small size of the Flame optical bench with a new uncooled InGaAs detector, the Flame-NIR opens a new frontier in NIR spectroscopy. Without thermoelectric cooling, the Flame-NIR’s power consumption needs are ultra-low and make the Flame-NIR ideal for integration into handheld and portable systems.



The Flame-NIR benefits from all the advantages of the Flame product line, including interchangeable slits and low unit to unit variability. The Flame-NIR is an ideal choice for many NIR applications including moisture measurement, grain and feed quality, measurement of fats and oils and pharmaceutical ingredients blending.



Specifications FLAME-NIR
SPECTROSCOPIC
Wavelength range: 970-1630 nm (standard preconfigured)
Optical resolution: ~10 nm FWHM (configuration dependent)
Signal-to-noise ratio: 6000:1 (full signal)
Dynamic Range 6000:1
Integration time: 1 ms → 65 seconds
DETECTOR
Detector: Hamamatsu G8160-03
Detector response: 900-1700 nm
Pixels: 128
PHYSICAL
Dimensions: 89.1 mm x 63.3 mm x 31.9 mm (34.4 mm with feet)
Weight: 265 g



Product Details



Modular — configurable to your application and needs within the wavelength range 970-1630 nm
Compatible — works with Ocean Optics light sources, accessories and software
Easy to use — plug and play via the micro USB connection
User interchangeable slit — allows you to vary the resolution and throughput of the spectrometer on demand
Indicator LEDs — indicator of power and data transfer status at all times
Compact and lightweight — 89.1 mm x 63.3 mm x 31.9 mm and just 265 g


Applications in which this product is used:

Agricultural Measurements and Monitoring
Air & Water Quality Analysis
Biofuels Analysis
Biotechnology Applications
Chemistry
Engineering
Food & Beverage Quality Control
Health & Life Sciences
Laser Characterization
LED Measurement
Light Measurement
Medical Diagnostic
Metallurgical Analysis
Photovoltaic Analysis
Physics & Astronomy
Plasma Monitoring
Polymer Analysis
Protein & Nucleic Acid Analysis
Remote Sensing
Thickness Measurement
Volcanic Research



pdf_logo
Flame NIR Datasheet - PDF 3.7 Meg

Ask a question about the Flame NIR Spectrometer





Manufacturer Informations

    Ocean Optics, a leader in miniature spectroscopy and multispectral sensing, is now Ocean Insight.

    Ocean Insight is part of Halma plc, a global group of life-saving technology companies.
