OceanView Spectroscopy Software - Ocean Optics

  • Manufactured by: Ocean Optics

Quick Overview

OceanView spectroscopy software combines powerful data processing capabilities with a clear graphical user interface for use with Ocean Optics miniature spectrometers. OceanView is highly customizable and includes a schematic view that provides a visual roadmap of data flow from spectral inputs to processed results. OceanView delivers results in..

Description

OceanView spectroscopy software combines powerful data processing capabilities with a clear graphical user interface for use with Ocean Optics miniature spectrometers. OceanView is highly customizable and includes a schematic view that provides a visual roadmap of data flow from spectral inputs to processed results. OceanView delivers results in the form of an answer, rather than just a simple waveform.




Features

  • Advanced file-saving features
    -  Save files according to user-specified settings including save files over time or for a specified number of scans
    -  One-click file saving once file-saving parameters have been configured, with status message to notify user that the file is being saved
    -  Ability to append data to a single file over time
    -  Ability to customize data saved with the Aggregate node on the Schematic

  • Support for RS-232 interface

  • Customizable user-interface that allows you to choose what data you want to display and which items to display on the toolbars and menus.

  • Persistence of user settings including:
    -  File locations
    -  Acquisition parameters
    -  Menu settings (hiding/showing of menu items)
    -  Graph view customization

  • Capability of manually saving experiment settings (source, processing type, acquisition parameters, data view customization) and reloading them again later.

  • Ability to perform specialized calculations on spectral and other measurement data, including:
    -  Derivatives and integrals of spectral data
    -  Spectral arithmetic
    -  Ratiometric on the same spectrum or between 2 different spectra
    -  Interpolation, subsetting and concatenation of a spectrum

  • Support of the following experiments/processing modes:
    -  Quick View (formerly Scope Mode)
    -  Quick View Minus Background
    -  Absorbance
    -  Reflection
    -  Fluorescence
    -  Transmission
    -  Raman
    -  Quick View Fluorescence
    -  Relative Irradiance
    -  Absolute Irradiance

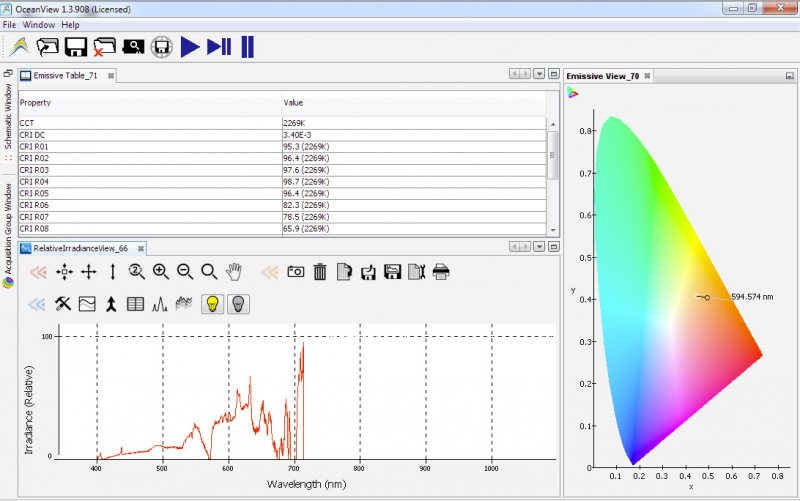

    -  Color
    -  Photometry
    -  Concentration
    -  Energy, Power, Photons

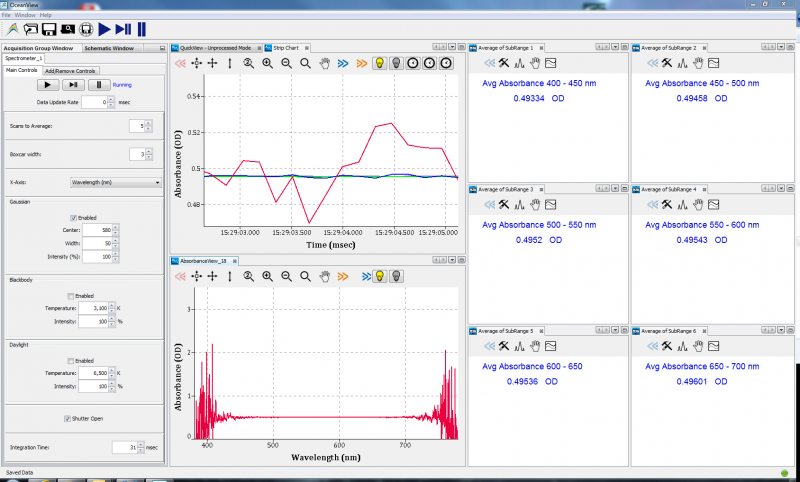

    -  Strip Charts
    -  Spectral Math/Arithmetic
    -  Spectral Splicing
    -  Color
    -  Photometry
    -  Peak metrics (including peak-finding capabilities that work with processed mode data)
    -  Schematic view for processing spectral data on the fly and for customizing your experiment (data acquisition)

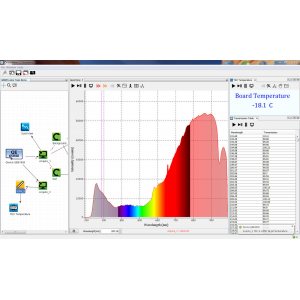

Schematic View
The Schematic View presents data from your device(s) in a diagram format. The Schematic View provides you with all of the functionality of the Window view, plus the following enhanced capabilities:

  • Algorithm nodes – allow for math functions such as ratios, adding multiple spectra, and adding a constant to spectra.

  • Set a subrange – ability to focus on a specific subset of the spectrum

  • Interpolate spectral data – evenly space data from two or more spectra to analyze them mathematically

  • Retrieve device properties such as serial number, firmware version, wavelength and total number of pixels

  • Send a single value (such as TEC temperature, integral, average over a specific wavelength range) from the device to the Scalar view to analyze the value over time

  • Preview spectra in graphs at every step in your process

  • Easily add new Graph and Table Views



Data Window

  • Unprecedented customizability with graph, table, scalar and color views

  • Used to monitor measurement

  • Provides controls to maintain measurement (e.g. store new background/reference)

  • Hides other controls to minimize clutter

  • Highly customizable with persistence to remember user settings



Platforms and Minimum System Requirements

OceanView operates on 32- and 64-bit Windows, Macintosh and Linux operating systems.

10-Day Free Trial Download
