Time-correlated single photon counting - LifeSpec II

  • Manufactured by: Edinburgh Instruments

Quick Overview

The Lifespec II is a compact, fully integrated, high performance, time-correlated single photon counting (TCSPC) fluorescence lifetime spectrometer designed for use with high repetition rate pulsed femtosecond and picosecond lasers. The system is a fully automated solution, combining hardware and software in a single package for fundamental rese..

Contact us

Description

The Lifespec II is a compact, fully integrated, high performance, time-correlated single photon counting (TCSPC) fluorescence lifetime spectrometer designed for use with high repetition rate pulsed femtosecond and picosecond lasers. The system is a fully automated solution, combining hardware and software in a single package for fundamental research and routine laboratory applications. Its zero temporal dispersion optics, using double-monochromators in subtractive mode, sets the standard for technical performance in measuring ultra-fast decays.

This is the only turn-key lifetime system on the market featuring a subtractive double-monochromator, which provides for zero temporal dispersion and allows the instrument to measure fluorescence lifetimes down to 5 ps with ultrafast lasers.

the powerful F980 software controls all the hardware and also analyses the raw data. With reconvolution, the software can reliably measure fluorescence lifetimes down to a tenth of the instrument response function.

Data acquisition modes range from fluorescence lifetime decay acquisitions and time-resolved spectra to automated time-resolved anisotropy measurements and automated temperature maps. The LifeSpec II in the standard configuration is supplied with one detector, however, additional detectors can be added. The LifeSpec II requires at least one picosecond pulsed diode laser (EPL Series), pulsed LED (EPLED Series), supercontinuum laser or Ti:Sapphire laser (with suitable pulse picker) for operation.

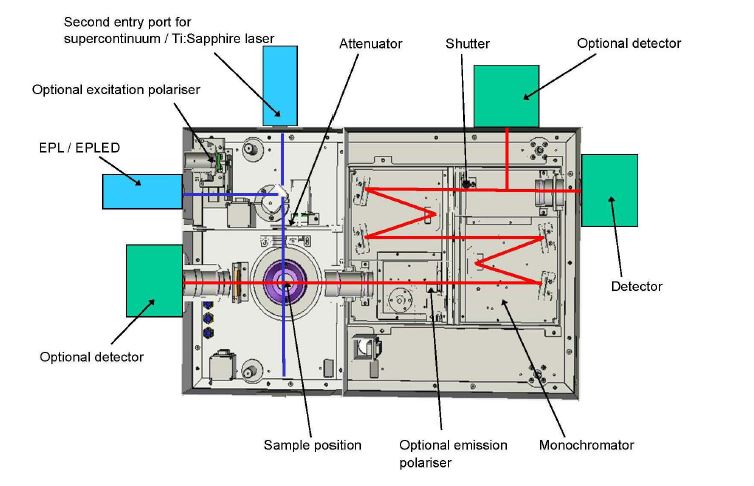

LifeSpec Schematic

  • Fastest TCSPC instrument on the market due to zero temporal dispersion
  • Subtractive double‐monochromators result in zero temporal dispersion
  • 5 ps – 50 μs lifetimes (detector and laser dependent)
  • Extended NIR range – spectral coverage up to 1650 nm
  • Compact footprint
  • Multi-laser integration through two excitation ports; super‐continuum, Ti:Sapphire, and plug‐and‐play

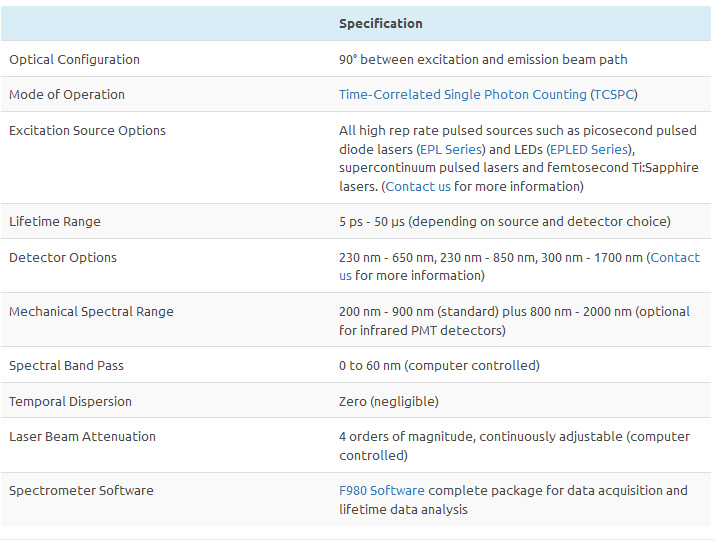

lifespec 2 specifications



pdf_logo
Lifespec 2 Brochure - PDF 2.2 Meg

Ask a question about the Time-correlated single photon counting - LifeSpec II





Manufacturer Informations

Edinburgh Instruments

    Founded in 1971 by Professor S. D. Smith, Edinburgh Instruments Ltd has become one of the world’s largest manufacturers of leading edge spectroscopic instrumentation and gas detection solutions.
