Enhanced Spectral Performance in a Compact Footprint



Ocean ST is a powerful microspectrometer that provides excellent UV response, high-speed spectral acquisition, and high signal to noise ratio performance in an ultra-compact footprint. Despite its small size and light weight, Ocean ST delivers full s..

Contact us

Description

Enhanced Spectral Performance in a Compact Footprint

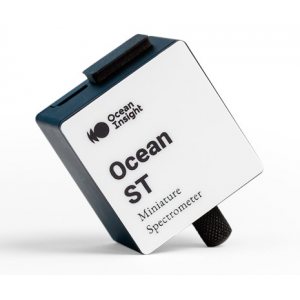

Ocean ST is a powerful microspectrometer that provides excellent UV response, high-speed spectral acquisition, and high signal to noise ratio performance in an ultra-compact footprint. Despite its small size and light weight, Ocean ST delivers full spectral analysis at a performance level comparable to larger and more expensive spectrometers. This powerful microspectrometer is ideal for both everyday lab use and integration into other devices and setups where space is limited. Applications range from DNA absorbance to color characterization.



Ocean ST Anchors Your Instrument Setup



Ocean ST microspectrometer options are available for UV, visible and shortwave NIR wavelength coverage, offering great application flexibility. Also, the replaceable slit design allows users to optimize the optical resolution and throughput of their setup. Choose a narrow slit width for light-rich applications where resolution is most important. For low-light applications, select a wider entrance slit to allow more light into the spectrometer.

The Ocean ST microspectrometer is compatible with Ocean Insight light sources, accessories and OceanView software, allowing users to mix and match components for different applications. Its rugged design, thermal stability and unit-tounit reproducibility make the Ocean ST microspectrometer an appealing choice for embedding into other instrumentation, inline process operations, and at-line quality control stations.



At a Glance


Dimensions: 42.1 mm (w) x 40.3 mm (d) x 26.6 mm (h)
Weight: 70.4 g
Wavelength range: 185-650 nm (UV-Vis); 350-810 nm (Vis-NIR); 645-1085 nm (NIR)
Optical resolution (w/25 μm slit): 2.2 nm (FWHM) (depending on configuration)
Signal to noise ratio: 190:1 (single scan @ 10 ms); 2250:1 (1 second average, non-buffered)
Dynamic range: 1000:1 (single scan)
Integration time: 3.8 ms-6 s
Stray light (AU): 2.0
Scan rate: 160 Hz (non-buffered)
A/D resolution: 14-bit
Thermal wavelength drift: 0.05 pixels/° C
Electronic connectors: USB-C; 16-pin Samtec TFM-108-02-L-DH accessory connector



pdf_logo
ST spectrometer brochure - PDF 3 Meg
