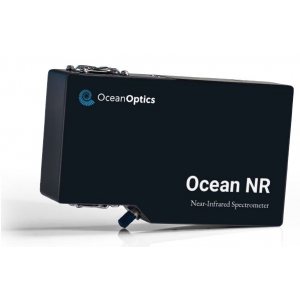

Ocean NR Series spectrometers - Ocean Optics

  • Manufactured by: Ocean Optics

Quick Overview

Ocean NR Series spectrometers are engineered for high-performance spectral analysis, delivering exceptional precision and reliability. Designed to excel in complex and low-light environments, NR spectrometers offer optical resolution as fine as 2.85 nm FWHM for detailed peak discrimination.



Thermoelectric cooling ensur..

Contact us

Description

Ocean NR Series spectrometers are engineered for high-performance spectral analysis, delivering exceptional precision and reliability. Designed to excel in complex and low-light environments, NR spectrometers offer optical resolution as fine as 2.85 nm FWHM for detailed peak discrimination.



Thermoelectric cooling ensures thermal stability and consistent results, while High Gain Mode enhances sensitivity to detect even the faintest signals. Whether you’re analyzing low-concentration samples or working in challenging conditions, NR spectrometers provide the clarity and confidence you need.



Specifications: NR 1.7 NR 2.2 NIRQuest+2.5
Wavelength Range 900 – 1700 nm 900 – 2188 nm 900 – 2450 nm
Optical resolution (FWHM) 2.85 – 13.03 nm 3.12 – 18.96 nm 6.48 – 25.60 nm
SNR (single scan @ 10 ms) 10,000:1 9,700:1 10,000:1
Integration time 1 ms – 120 s 1 ms – 8 s 1 – 200 ms
Connectors 16 pin Samtec TFM, RS-232, SMA 905 (input fiber), USB Type-C 16 pin Samtec TFM, RS-232, SMA 905 (input fiber), USB Type-C SMA 905 (input fiber)
Physical dimensions 182.3 x 109.2 x 49.8 mm 182.3 x 109.2 x 49.8 mm 182 x 110 x 47 mm
Weight 1.13 kg (spectrometer); 450 g (power supply) 1.13 kg (spectrometer); 450 g (power supply) 1.15 kg (spectrometer); 450 g (power supply)
Temperature (operation) 10 °C – 35 °C 10 °C – 35 °C 10 °C – 35 °C
Temperature (storage) -30 °C – 70 °C -30 °C – 70 °C -30 °C – 70 °C
Best for
  • Pharmaceuticals, Biotechnology and Medical
  • Food and Agriculture
  • Environment and Sustainability
  • Semiconductor and Energy Materials
  • Authentication of products
  • Determination of hydrocarbon solvents
  • Identification of plastics in recycling
  • Moisture detection in fruits and grains





pdf_logo
Ocean NR Datasheet - PDF 2.1 Meg
