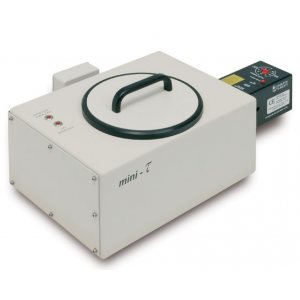

Dedicated Lifetime Spectrometer Mini-tau

  • Manufactured by: Edinburgh Instruments

Quick Overview

The Mini-tau is an ultra-compact, low cost, filter-based fluorescence lifetime spectrometer for lifetimes ranging from 25 ps to 50 μs*. Using the Time-Correlated Single Photon Counting (TCSPC) technique, the Mini-tau is supplied with our F980 software and a USB connected TCC2 electronics module to enable fast, reliable, and accurate measureme..

Contact us

Description

The Mini-tau is an ultra-compact, low cost, filter-based fluorescence lifetime spectrometer for lifetimes ranging from 25 ps to 50 μs*. Using the Time-Correlated Single Photon Counting (TCSPC) technique, the Mini-tau is supplied with our F980 software and a USB connected TCC2 electronics module to enable fast, reliable, and accurate measurement and data analysis.

Whether you need to measure fluorescence lifetimes of time-resolved fluorescence anisotropy for research, quality assurance or teaching applications, the Mini-tau is the ideal all-inclusive, fully-integrated solution. The Mini-tau measures fluorescence lifetimes after numerical reconvolution based on the established Marquardt-Levenberg algorithm.

The F980 software supplied with the Mini-tau has an easy-to-use interface and allows users to comprehensively record data and accurately analyse complex decay kinetics of up to 4 lifetimes.

*Minimal lifetime resolution is laser dependent.



  • Ultra compact filter-based fluorescence lifetime spectrometer
  • Short Lifetimes ranging from 25 ps to 50 μs
  • Integrated electronics with repetition rates up to 100 MHz
  • Ultra-fast blue or red sensitive single photon counting PMT for ultimate sensitivity
  • Fully comprehensive data acquisition and analysis

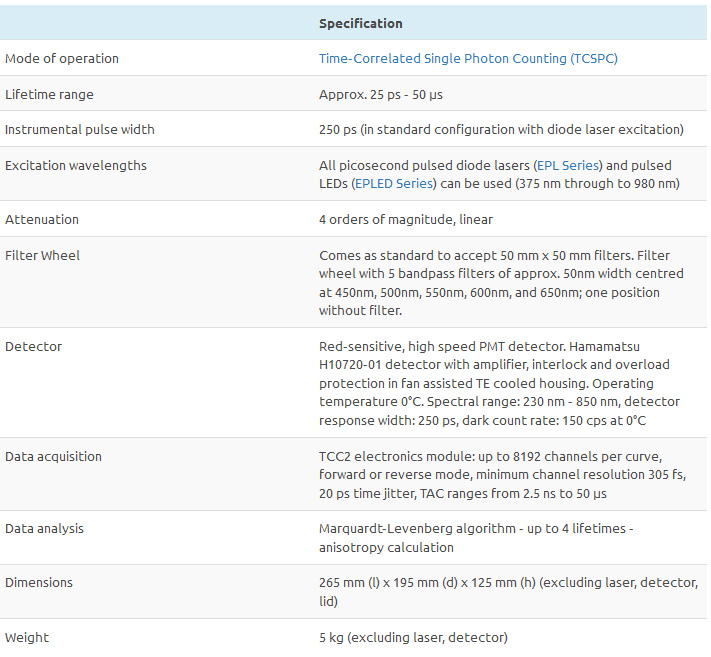

mini tau spectrometer specifications



pdf_logo
Mini-Tau Spectrometer Brochure - PDF 0.35 Meg

Ask a question about the Dedicated Lifetime Spectrometer Mini-tau





Manufacturer Informations

Edinburgh Instruments

    Founded in 1971 by Professor S. D. Smith, Edinburgh Instruments Ltd has become one of the world’s largest manufacturers of leading edge spectroscopic instrumentation and gas detection solutions.
