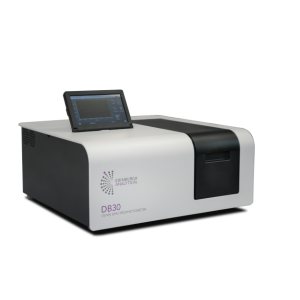

DB30 - Double Beam UV-Vis Spectrophotometer

Manufactured by: Edinburgh Analytical

Quick Overview

Versatile double beam UV-Vis spectrophotometer with a benchtop footprint.

Suitable for analytical, research, and pharmaceutical industry applications.

Product description

Description

Description

Versatile double beam UV-Vis spectrophotometer with a benchtop footprint.

Suitable for analytical, research, and pharmaceutical industry applications.

Product description

The DB30 UV-Vis Spectrophotometer is a powerful double beam instrument designed for precise and accurate measurement of absorption and transmission across various wavelengths, making it essential for analytical applications where precision is paramount.

Engineered for versatility, this user-friendly spectrophotometer excels in a wide range of measurements, from standard absorbance in cuvettes to solid samples and flow cell experiments. Its high-throughput optical design delivers exceptional performance, ensuring superior stray light control, baseline stability, and unmatched wavelength and photometric accuracy.

The DB30 offers flexible operation, whether as a standalone device with its integrated touchscreen or through PC control using Visacle® software. Visacle provides a secure database for storing data and methods, and it can be upgraded to a CFR Part 11 compliant package for enhanced data protection and integrity.

Specifications

- Variable bandpass options: 0.5, 1.0, 1.5, 2.0 or 4.0 nm over the range 190 nm – 1100 nm

- Fast scanning: up to 6,000 nm/min to aid sample analysis throughput

- Automatic accessory recognition: when connected to the DB30

- Optional Visacle® software: for easy PC control

- Touchscreen interface: intuitive menus and functions for ease of use for standalone control

- Multiple Data Storage Options: USB, SD card and internal data storage for convenient retrieval of methods and results

Product video

Measurement example

UV Absorption Spectra
The DB30 covers the UV range down to 190 nm with an absorbance range > 3.

This makes measuring samples high UV absorption possible, such as the edible oil spectra plotted below.

UV absorption spectra of heat-treated extra virgin olive oil, blended oil, virgin olive oil, extra virgin olive oil, and pomace oil; measured in a standard DB30 dual spectrophotometer.
