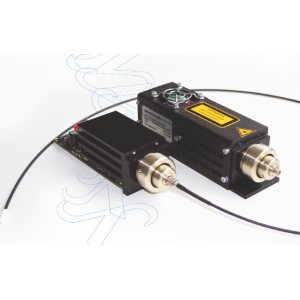

High Power Fiber Coupled LED Modules - LEDMOD Series

  • Manufactured by: Omicron laserage

Quick Overview

The temperature-stabilized, high-power LED modules of the LEDMOD series are intended for users in the industry, research and science sector.

Applications in biotech, medical technology, microscopy, photocatalysis and fluorescence excitation are only some of the applications in which these laboratory light sources are employed. The mo..

Description

The temperature-stabilized, high-power LED modules of the LEDMOD series are intended for users in the industry, research and science sector.

Applications in biotech, medical technology, microscopy, photocatalysis and fluorescence excitation are only some of the applications in which these laboratory light sources are employed. The modules are available in many wavelengths, from deep UV (255nm) to the infrared range (950nm).


The optional, highly efficient fiber coupling, the integrated interface RS-232, the Windows™ compatible software for programming and control, and the diverse operating modes, make these modules flexible, compact and extremely long-lived sources of light, which up to now could not be realized with classical methods. The possibility of external analogue and digital modulation, the programmability of an internal frequency PWM with variable duty-cycle and the controllability over the serial interface, enable adaptation of the source of light to nearly every application.


The high optical output powers (particularly in the UV range at 365nm, 385nm and 405nm) represent a long-lived alternative to UV discharge lamps. LEDMOD LED modules, with emission in the blue, green, yellow, red and infrared range, as well as a white light source, represent a genuine, wavelength-stable alternative source of light for halogen lamps. Reproducible results of measurement are thus guaranteed!



datasheet BrixX
Datasheet (PDF- 0,8 Mo)

Ask a question about the High Power Fiber Coupled LED Modules - LEDMOD Series





Manufacturer Informations

Omicron laserage

    For more than 20 years now, Omicron has been developing, building and producing its systems inhouse. Product quality is ensured with the aid of modern measurement technology & development and production meet both European and American standards.


    Omicron Laser Catalogue
    Omicron Laser Catalogue
    (PDF - 4 Meg)
