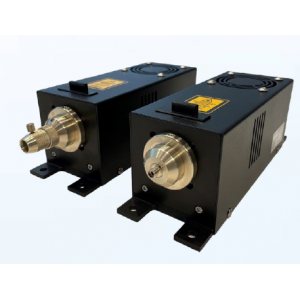

LEDMOD HP Series

  • Manufactured by: Omicron laserage

Quick Overview

Ultra High Power LED modules with TEC cooling and optional fibre-coupling



The LEDMOD HP modules offer great functionality and flexibility for applications in industry and research. With wavelengths from 365 to 660nm and optical output power of up to several watts, th..

Contact us

Description

Ultra High Power LED modules with TEC cooling and optional fibre-coupling



The LEDMOD HP modules offer great functionality and flexibility for applications in industry and research. With wavelengths from 365 to 660nm and optical output power of up to several watts, the LEDMOD HP series can be used in many power-hungry applications such as microscopy, chemical analysis, spectroscopy, forensics and others. The LED modules are available in a fibre- or liquid light guide coupled version or with free space emission.



The modules have modulation inputs for fast analogue intensity modulation with up to 500 kilohertz and digital modulation with a switching time of < 2µs. High-precision temperature stabilization of the LED chips ensures a very good performance and wavelength stability. This is important especially for applications that not only need an exact output power, but also a high stability of the emission spectrum. The digital modulation can be operated via external modulation signals, as well as an internal, programmable signal generator. A SYNC output ensures synchronization with external devices such as cameras, spectrometers and lock-in amplifiers.



One or several LEDMOD HP modules can be comfortably controlled via RS-232 and USB 2.0 interface by either the supplied software 'Omicron Control Center' or the customer's own software.


Key Facts:


• Wavelengths between 365nm and 660nm + white available
• High spectral- and power stability due to TEC temp. control of the LED chip
• Fibre and Liquid Light Guide coupling
• Fast analogue and digital modulation up to 500kHz (<2µs switching time)
• Internal, programmable PWM frequency generator up to 200kHz
• SYNC output
• USB2.0 and RS-232 interface
• Drivers for Metamorph, LabVIEW and Micromanager available

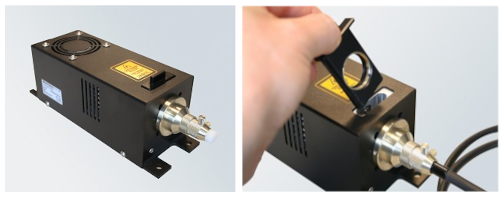

Omicron ledmod hp























Wavelengths & Powers
(other wavelengths and powers on request)

UV / Violett:
365nm / 3500mW
385nm / 4500mW
405nm / 4500mW
VIS:
455nm / 3000mW
465nm / 3000mW
500-600nm / 2400mW
530nm / 650mW
635nm / 850mW
660nm / 1200mW
White:
5600K / 2000mW



Ask a question about the LEDMOD HP Series





Manufacturer Informations

Omicron laserage

    For more than 20 years now, Omicron has been developing, building and producing its systems inhouse. Product quality is ensured with the aid of modern measurement technology & development and production meet both European and American standards.


    Omicron Laser Catalogue
    Omicron Laser Catalogue
    (PDF - 4 Meg)
