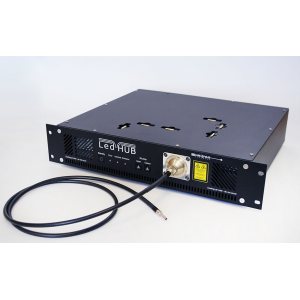

High Power LED light source - up to 6 different wavelengths

  • Manufactured by: Omicron laserage

Quick Overview

The Omicron LedHUB is a high power LED light source for Biotech, industrial and analytical applications. With its up to 6 different wavelengths between 365 and 840nm it can be used in applications like widefield microscopy, optogenetics, chemical analysis, forensics and many more. The modular principle of the LedHUB® provides the possibility..

Description

The Omicron LedHUB is a high power LED light source for Biotech, industrial and analytical applications. With its up to 6 different wavelengths between 365 and 840nm it can be used in applications like widefield microscopy, optogenetics, chemical analysis, forensics and many more. The modular principle of the LedHUB® provides the possibility to start with only one or two wavelengths initially and user-upgradeability to further wavelengths at a later stage. The capability of fast switching between the wavelengths and high speed analogue modulation of the intensity is a key feature for demanding applications.

Modular principle for up to 6 different wavelengths with user-upgradability


  • Individual analogue modulation inputs for fast power control of LED wavelengths

  • User replaceable excitation filters (bandpass filters) for each LED channel

  • Precise intensity control in 0.1% steps (0-100%) by computer control (USB)

  • Individual digital modulation inputs for fast full on/off control with <2µs switching time

  • Intelligent SYNC in- and outputs for master or slave control of/from external cameras or instruments

  • Stable & repeatable – TEC temperature controlled LED chips for reliable and consistent results

  • Compatible to 2, 3 and 5mm Liquid Light Guides and SMA or FC/PC connectorized quartz fibers

  • Ecellent uniformity over field of view – fixed and stable, no alignment necessary

  • Long lifetime – expected to exceed 25,000 hours of operating time

LedHUB® - Specifications:

Model:

LedHUB® with up to 6 wavelengths

Available wavelengths:

365nm / 400mW*
385nm / 1000mW*
405nm / 500mW*
455nm / 500mW*
470nm / 400mW*
505nm / 200mW*
505...600nm / 800mW* - wavelength selectable by bandpass filter
625nm / 500mW*
660nm / 500mW*

* The optical output power depends on the used fiber / liquid light guide diameter and installed bandpass filters

Available fiber coupling types:

2mm Liquid Light Guide
3mm Liquid Light Guide
5mm Liquid Light Guide
SMA-905 connectorized Quartz fibers
FC/PC connectorized Quartz fibers

Excitation bandpass filters:

6x (1 per wavelength) - easily exchangable by user

External Modulation:

6x Analogue modulation input:
Frequency: DC...200kHz
Rise-/falltime: <2µs
Extinction ratio: ∞, infinite
Input signal type: 0...5V or 0...10V (user configurable)
Connector type: BNC or Sub-D

6x Digital modulation input:
Frequency: DC...200kHz
Rise-/falltime: <2µs
Extinction ratio: ∞, infinite
Input signal type: TTL (5V)
Connector type: BNC or Sub-D

Internal signal generation:

6 Individually programmable PWM frequency generators (1 for each wavelength)
Frequency: up to 200kHz
Duty-Cycle: 1...99%

External synchronization:

1x SYNC-Input for synchronisation to external signals
Input signal type: TTL (5V)
Connector type: BNC or Sub-D

1x SYNC-Output for synchronisation of external units
Output signal type: TTL (5V)
Connector type: BNC or Sub-D

Control interface:

Type: USB 2.0 and RS-232

Control software:

Omicron Control Center - WindowsTM based laser control software

Supply voltage:

100-240VAC, 50/60Hz, 250W max.

Mechanical size:

19 inch rack housing, 2 height units
L x W x H: 383mm x 484mm x 88mm ( without fiber coupler and connectors)

Available options:

LLGA2 - Liquid Light Guide Adapter including 2mm Liquid Light Guide (1.5m)
LLGA3 - Liquid Light Guide Adapter including 3mm Liquid Light Guide (1.5m)
LLGA5 - Liquid Light Guide Adapter including 5mm Liquid Light Guide (1.5m)
LHSMA - Fiber coupling unit for SMA-905 connectorized fibers
LHFCPC - Fiber coupling unit for FC/PC connectorized fibers

LHOLYMP - Olympus microscope adapter for 3mm Liquid Light Guides
LHLEICA - Leica microscope adapter for 3mm Liquid Light Guides
LHZEISS - Zeiss microscope adapter for 3mm Liquid Light Guides
LHNIKON - Nikon microscope adapter for 3mm Liquid Light Guides
