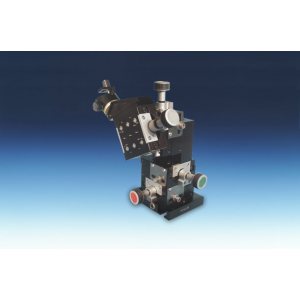

MX1640 - Micromanipulator Four Axis Manual

  • Manufactured by: Siskiyou

Quick Overview

  • Ultra-high stability, with 20mm travel in all four axes
  • True fourth axis, not interpolated.
  • Repeatable probe clamp aids fast pipette/electrode replacement
  • Low profile base mount allows direct mounting to microscope platforms

The MX1640 series crossed roller micromanipulator is ideal for ..

Contact us

Description

  • Ultra-high stability, with 20mm travel in all four axes
  • True fourth axis, not interpolated.
  • Repeatable probe clamp aids fast pipette/electrode replacement
  • Low profile base mount allows direct mounting to microscope platforms

The MX1640 series crossed roller micromanipulator is ideal for introductory level research and training course use. The lead screws are spring loaded against a solid stop to ensure drift-free operation. The MX1640 incorporates 40TPI screw drive positioning for smooth crossed roller motion in all axis. The Q axis can be adjusted to the desired angle of approach from 0° to 180°.

The MX1640 has our MXC-45 mounted to the Q axis. The MXC-45’s built in rotational stop allows easy electrode/pipette replacement. MX1640 comes standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required, the MX-RS rotation stage is designed to mount directly into the ABP-R as well as the MX1641.

This manipulator may be customized with 20, 40 , or 80 TPI lead screws.

Performance specifications: Manual Drive

Maximum axial load: 2 lbs.
Travel: 20mm.
Resolution:  1620 20TPI = 10µm.
1640 40TPI = submicron
1680  80TPI = submicron
