Miniature Micromanipulator 3 Axis + One Hydraulic

  • Manufactured by: Siskiyou

Quick Overview

The MX10R-H is a miniature micromanipulator that is ideal for positioning applications that require submicron level resolution.

In this design we have combined our DT100 series stages with the MX610 single-axis hydraulic manipulator. This combination enables the experimenter to use the fine positioning accuracy of the dovetail stage to..

Description

The MX10R-H is a miniature micromanipulator that is ideal for positioning applications that require submicron level resolution.

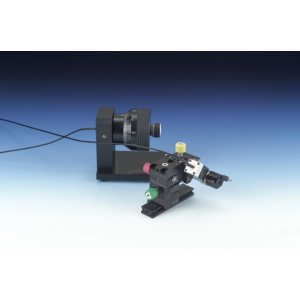

In this design we have combined our DT100 series stages with the MX610 single-axis hydraulic manipulator. This combination enables the experimenter to use the fine positioning accuracy of the dovetail stage to get close to the desired location and then use the submicron resolution of the hydraulic stage to make the final adjustment. The hydraulic stage is mounted on a fourth axis which can be set at any angle through 360° of motion.
The compact size of the MX10R-H makes it ideal for stimulator applications, puffer pipettes or micro-injection set-ups. Our miniature dovetail slide uses an adjustable spring-loaded gib design and a precision rolled 80TPI lead screw for smooth positioning along its entire travel. These features ensure stability and straightness of travel over many years of use.
The MDR-3.0 miniature dovetail rail makes mounting and replacement very straightforward. The addition of a simple stop allows repeatable placement.

Performance specifications:

Resolution: XYZ axis 5 µm.
Resolution: Fourth axis 0.5 µm.
Travel: XYZ axis 10mm.
Travel: Fourth axis 5mm.

Ask a question about the Miniature Micromanipulator 3 Axis + One Hydraulic
