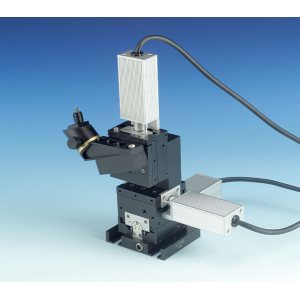

Micromanipulator Three axis motorized

  • Manufactured by: Siskiyou

Quick Overview

  • Ultra-high stability, with 20mm travel in all three axes
  • Repeatable probe clamp aids fast pipette/electrode replacement
  • Low profile base mount allows direct mounting to microscope platforms

The MX7630 motorized crossed roller bearing micromanipulator is ideal for micro-injection applications. The M..

Contact us

Description

  • Ultra-high stability, with 20mm travel in all three axes
  • Repeatable probe clamp aids fast pipette/electrode replacement
  • Low profile base mount allows direct mounting to microscope platforms

The MX7630 motorized crossed roller bearing micromanipulator is ideal for micro-injection applications. The MX7630 offers exceptionally smooth linear travel, and uses a precision pre-loaded lead screw to ensure drift-free operation. The motorized 3-axis micromanipulator incorporates our MXC-45 pipette holder mounted to an adjustable clamp on the Z axis. This clamp allows the MXC-45 to be adjusted to the desired angle of approach from 0° to 180°. The MXC-45’s built in rotational stop allows easy pipette replacement.

Our MC1000e-J is ideal for controlling the MX7630. The manipulatorsÂ’ drive system uses a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 1.0 µm resolution. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements. All cables are shielded to ensure noise-free operation during sensitive electrophysiology experiments.

7630 series stages come standard with our ABP-R mounting plate. The design of this mounting plate enables coarse positioning between platform mounting holes as well as 360° of coarse rotational positioning. If rotation with a solid submicron level stop is required, the MX-RS rotation stage is designed to mount directly into the ABP-R, and has mounting holes for all 7630 stages.

Performance specifications:

Max load: 5 lbs.
Travel: 20mm.
Backlash: < 5µm.
Point to point accuracy: + 2µm.
