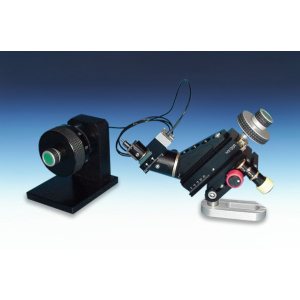

Hydraulic Micromanipulator Narrow Profile Single Axis

  • Manufactured by: Siskiyou

Quick Overview

The MX130-H Manipulator is designed to maximize available space. The narrow profile design allows multiple manipulators to be placed in one quadrant.

The MX130-H provides 38mm coarse and 10mm fine positioning travel in the X axis. The fine positioning knob provides 3mm of manual adjust in addition to the 5mm of hydraulic adjustment. Th..

Contact us

Description

The MX130-H Manipulator is designed to maximize available space. The narrow profile design allows multiple manipulators to be placed in one quadrant.

The MX130-H provides 38mm coarse and 10mm fine positioning travel in the X axis. The fine positioning knob provides 3mm of manual adjust in addition to the 5mm of hydraulic adjustment. The fine positioning dial on hydraulic axis uses our ultrafine 127TPI adjustment screws to enable 0.5 µm resolution with 5mm of travel.

Two and a half turns of the coarse adjustment knob will fully retract the device in the X axis. Equipped with a rotatable probe clamp for easy change of implement.

Y, Z axis adjustments are accomplished with the fine adjustment screws mounted on the back of the device. Additionally the Z axis adjust screw may be configured with the knob on the top or the bottom, which ever provides the best access. Device angle is easily set by loosening the locking screw. The RTC-0.5 mounting base provides rough rotational positioning and flexible mounting options, base or post.

Left hand or right hand models to suit the application.

The extra length dovetail stage of the X axis combined with the spring loaded pivot mechanism (pat #6590723) of the other two axis allow for a high level of stability. This allows for smooth and precise adjustments

Performance specifications:

Min in X axis Resolution: .5 µm.
Other Axis Resolution: 5 µm.
