Coarse / Repeatable Rotation Bases

  • Manufactured by: Siskiyou

Quick Overview

  • Repeating base adapts to Siskiyou' MX7600 and MX160 manipulators, and 7600 and 1600 stages
  • Mounting plugs to fit any device with 1/4-20 or 8-32 thread/cap screw configuration
  • Simple mounting plate with coarse rotation adjustment

Siskiyou’ ABP-R comes as a standard part of our MX160 and MX..

Contact us

Description

  • Repeating base adapts to Siskiyou' MX7600 and MX160 manipulators, and 7600 and 1600 stages
  • Mounting plugs to fit any device with 1/4-20 or 8-32 thread/cap screw configuration
  • Simple mounting plate with coarse rotation adjustment

Siskiyou’ ABP-R comes as a standard part of our MX160 and MX7600 manipulators and our 1600 and 7600 stages.

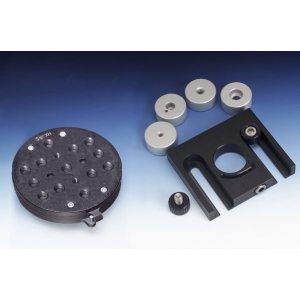

Aluminum Base Plate, Coarse Rotation

The ABP-R mounting base allows the user to coarsely adjust the position of a device both transversely and rotationally. The mounting slots on the ABP-R allow positioning between mounting holes on isolation tables and platforms while the center clamp enables 360 degrees of rotation of our adapter plugs.

Rotation Base Adapters

ABP-R1, -R2, -R3, and -R4 series of adapter plugs enable the user to benefit from the location flexibility of the ABP-R mounting base. These adapter plugs come in versions compatible with 1/4-20 or 8-32 attachments.

Repeatable Rotation Base

The MX-RS repeating rotation stage is designed to mount onto our ABP-R. The MX-RS uses a magnetic coupling to ensure submicron relocation. By combining the ABP-R with the MX-RS a multitude of devices can be positioned, rotated out of an experiment, and then returned with great accuracy.

The mounting surface of the MX-RS is laid out with 1/4-20 and 8-32 mounting holes and is compatible with our 1600, 7600, MX160, MX1600, MX6600, and MX7600 series of stages and manipulators. The repeatable design adds a level of flexibility to quick and precise electrode replacement.
