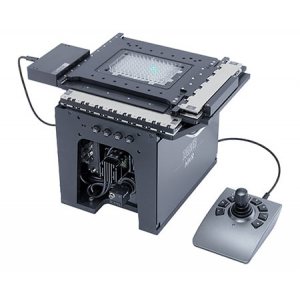

Nucleus® MVR inverted fluorescence microscopes

  • Manufactured by: Zaber Technologies

Quick Overview

Zaber’s Nucleus® motorized, inverted microscopes lower the barriers to automated microscopy. By combining Zaber precision motion control and world-class optics, Nucleus microscopes deliver unparalleled performance and value.



Build the exact microscope system you need. Nuclues' modular design makes it easy..

Contact us

Description

Zaber’s Nucleus® motorized, inverted microscopes lower the barriers to automated microscopy. By combining Zaber precision motion control and world-class optics, Nucleus microscopes deliver unparalleled performance and value.



Build the exact microscope system you need. Nuclues' modular design makes it easy to add or remove modules such as epi and transmitted illuminators, laser autofocus, additional inputs into the optical path, and even swap the tube lens, should you need to conduct hyperspectral imaging.



While most microscope companies charge you thousands for software, we provide free Zaber Launcher software for controlling and configuring your microscope. The Nucleus microscope platform is also fully compatible with Inscoper, VisiView, Starlyte Nebula, and µManager microscopy software. For applications requiring extended capabilities, our comprehensively documented Zaber Motion Library API provides access to all microscope features, making custom scripting and software development easy.



For startups developing a device as a stand-alone product or to power a proprietary service, the Nucleus® microscopes hep you launch faster. Develop your proof of concept on a flexible and fully featured research system, then seamlessly transition to a production optimized imaging imaging subsystem with no additional hardware or software engineering required.


1 - C-mount camera adaptor. CMOS camera available as standard. F-mount, M42 mount and dual camera mount options are available upon request.


2 - Universal tube lens mount supports popular optical systems such as Zeiss ICS, Nikon CFI60, Olympus and Edmund Optics. UV and IR optimized tube lenses are available upon request.


3 - 25 mm travel linear motor focus stage with magnetic counterbalance delivers 20 nm steps.


4 - Microscope can be set up on included baseplate, or bolted directly to any M6 x 25 mm optical table.


5 - Compatible with MLR3 series epi-illuminator modules, MLT transmitted illuminators, as well as third-party LED and Laser light engines via the MLG3A 3 mm liquid light guide coupler.


6- Available with 100 to 305 mm XY travel.


7- Optional junction block allows for coupling of the HL04 laser autofocus module, or other lasers or secondary illumination sources directly into the infinity space.


8 - Optional MOR4 motorized objective changer module.


9 - Motorized 6 position filter cube turret. Supports widely available Zeiss "Push & Click" style filter cubes. A single filter cube body is available upon request.





pdf_logo

Nucleus® MVR inverted fluorescence microscopes - Product overview - PDF 0.2 Meg





Ask a question about the Nucleus® MVR inverted fluorescence microscopes





Manufacturer Informations

Zaber Technologies
Manufacturer Website

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
