Perfusion Chamber & Adapters

  • Manufactured by: Siskiyou

Quick Overview

  • 22mm square cover slip for glass bottom
  • 4 embedded magnet inserts
  • Available in horizontal or vertical configurations

The PC series perfusion chambers have embedded magnets that are conveniently located to retain perfusion plumbing and ground plugs. They are designed to fit into our 8090C fixed stag..

Contact us

Description

  • 22mm square cover slip for glass bottom
  • 4 embedded magnet inserts
  • Available in horizontal or vertical configurations

The PC series perfusion chambers have embedded magnets that are conveniently located to retain perfusion plumbing and ground plugs. They are designed to fit into our 8090C fixed stage platform. A standard 22 mm cover slip is used to create the chamber bottom that is attached with vacuum grease, silicon, or parafilm (use a heat gun to gently melt the parafilm). There are two plastic retention screws for added security. Both openings accept 13 mm round cover slips for cultured specimens.

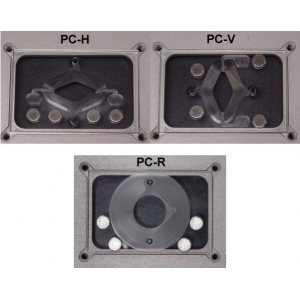

PC series chambers come in three styles: horizontal, vertical and round. All models have two small but very powerful magnets located next to the input/output reservoirs, and two more located closer to the recording chamber. The location of these magnets securely hold your perfusion plumbing or ground wiring close to the final location.

The PC-A chamber adapter allows the user to mount our PC series chambers into our 8090P platform. Their 10.8-cm diameter is also compatible with Nikon microscope stages and allows 360° rotation of the chamber. The PC-A11 chamber adapter has an 11-cm diameter is also compatible with Olympus microscope stages.

Ask a question about the Perfusion Chamber & Adapters





Manufacturer Informations

Siskiyou

    Siskiyou provides a diverse range of micromanipulators, microscope sample positioners, motion control systems and modular opto-mechanical building blocks to Life Science and Photonics researchers.


    Siskiyou catalogue
    Siskiyou Catalogue
    (PDF - 73 Meg)
