Microscope Translators

  • Manufactured by: Siskiyou

Quick Overview

Economy MXMS-100 & 125 series microscope translators are designed to be stable XY translators for fixed stages experiments. MXMS-100/125 series translators have a full 25 mm of XY translation, and use ball transfer pads in the back two bearing locations. These ball transfer pads have proven themselves as a solid alternative to full crossed r..

Description

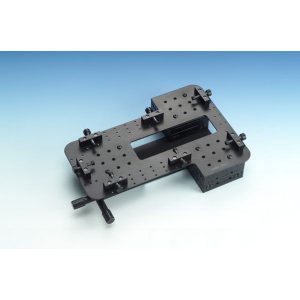

Economy MXMS-100 & 125 series microscope translators are designed to be stable XY translators for fixed stages experiments. MXMS-100/125 series translators have a full 25 mm of XY translation, and use ball transfer pads in the back two bearing locations. These ball transfer pads have proven themselves as a solid alternative to full crossed roller translators.

Our economy models are only available in manual versions, and can be fitted with either 20, 40, 80, or 100 TPI adjustment screws with resolution from 20 µm down to 5 µm, respectively. Please specify which pitch of adjustment screw you require when ordering. Replace -xx in the Model Number with the desired thread. Example: For a MXMS-125 with 40TPI adjustment screws, order Model Number MXMS-125-40.

Our MXMS-100cr & 125cr series microscope translators are designed to be stable XY translators for fixed stages experiments. MXMS-100cr and 125cr series translators have a full 25 mm of XY translation, and have full crossed roller bearing stages in all three locations.

Our MXMS crossed roller translators are available in motorized and manual versions. Motorized versions can be controlled with any e series and MC2000 controllers. Our controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution, respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements. All cables are shielded to ensure noise-free operation during sensitive electrophysiology experiments. Manual versions can be fitted with either 20, 40, 80, or 100 TPI adjustment screws with resolution from 20 µm down to 5 µm, respectively. Please specify which pitch of adjustment screw you require when ordering. Replace -xx in the Model Number with the desired thread.

Please include the name of the manufacturer and complete model number of your microscope when ordering.

When using a top mounted imaging system with extension tubes the cr version is recommended for improved stability.
