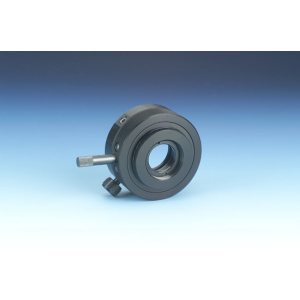

Optic Focus Translator

  • Manufactured by: Siskiyou

Quick Overview

OPTIC FOCUS TRANSLATOR (OFT-1.0)

  • 0.2 in (5 mm) travel in translation axis.
  • Lever handle attaches at any of three positions.
  • Accepts optics up to 1.375 inches in diameter

The OFT optical focus translator allows the user to simply adjust the focus of an optic along the optical axis. Our s..

Description

OPTIC FOCUS TRANSLATOR (OFT-1.0)

  • 0.2 in (5 mm) travel in translation axis.
  • Lever handle attaches at any of three positions.
  • Accepts optics up to 1.375 inches in diameter

The OFT optical focus translator allows the user to simply adjust the focus of an optic along the optical axis. Our simple cam design is able to translate 0.25-inch in 30_ of rotation of the focusing lever. Once in position the OFT-1.0 can be locked with a Delrin® knob.

Vertical or horizontal mounting of the OFT-1.0 is made simple with multiple 8-32 and 1/4-20 tapped holes on its diameter and back face. The OFT-1.0 comes with our OH1.0 and is compatible with our OH1.0 series of optic holders.
