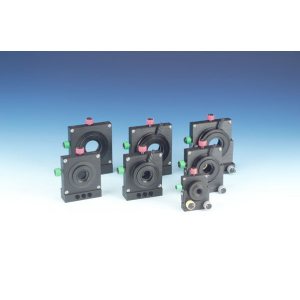

Multi Axis lens Positioners

  • Manufactured by: Siskiyou

Quick Overview

  • 80 Pitch Adjustment Screws on X and Y axis, pitch and  yaw if so equipped
  • Accepts optics up to 2 inches in diameter
  • Z axis translates without rotation

The thin design of our OT optical translators make them ideal for crowded beam path applicat..

Description

  • 80 Pitch Adjustment Screws on X and Y axis, pitch and  yaw if so equipped
  • Accepts optics up to 2 inches in diameter
  • Z axis translates without rotation

The thin design of our OT optical translators make them ideal for crowded beam path applications. These thin optical translators use 80TPI adjustment screws for precise positioning is XY, XYZ, or 5 axis gimbaled models. The Y axis knob in all models uses a unique capture screw design to ensure no drift due to over loading in that axis.

All models use our soft touch color coded knob caps for easy axis identification in low light conditions.

OT optical translators are compatible with our OH series of optics holders for microscope objective, and custom optic mounting.

Optics adapters for the above products may be found here, Adapters. Modular Mounting Bases.

Ask a question about the Multi Axis lens Positioners





Manufacturer Informations

Siskiyou

    Siskiyou provides a diverse range of micromanipulators, microscope sample positioners, motion control systems and modular opto-mechanical building blocks to Life Science and Photonics researchers.


    Siskiyou catalogue
    Siskiyou Catalogue
    (PDF - 73 Meg)
