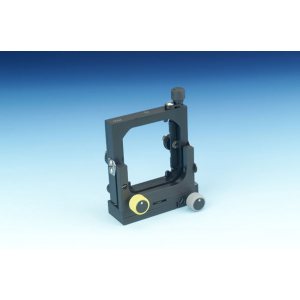

Cylindrical Optic Holder

  • Manufactured by: Siskiyou

Quick Overview

CYLINDRICAL  LENS POSITIONER (CLP3)

  • Stable pivot mechanism.
  • High precision 80tpi adjustment screws.
  • High Load and Deflection rate springs.

The CLP3 cylindrical lens polarizer uses our time-tested OG-2.0 gimbal as a sturdy positioning platform. They use our precision rolled 80TPI ad..

Contact us

Description

CYLINDRICAL  LENS POSITIONER (CLP3)

  • Stable pivot mechanism.
  • High precision 80tpi adjustment screws.
  • High Load and Deflection rate springs.

The CLP3 cylindrical lens polarizer uses our time-tested OG-2.0 gimbal as a sturdy positioning platform. They use our precision rolled 80TPI adjustment screws for accurate gimbaled positioning and our Soft Touch color coded knob caps for easy axis identification in low light conditions.

Rotational adjustment about the optical axis is achieved by a top mounted 80TPI adjustment screw, and has a top viewed reference scale for easy alignment. Non-marring Delrin® mounting knobs hold the lens securely in place. The front mounting plate can be easily rotated to change the beam output by 90 degrees.

Accepts 1 X 2 inch, 2 X 2 inch, 2 X 2.38 inch, and the metric equivalent of these optics  25mm x 50mm, 50mm x 50mm and 50mm x 60mm cylindrical lens.
