X-Ray Camera - Eagle XO

  • Manufactured by: Raptor Photonics

Quick Overview

Cooled 4MP High Energy CCD - High Energy Cameras for both Imaging and Spectroscopy applications



Introducing a high energy version one of the most sensitive CCD cameras in the World. Using a back-illuminated 4MP CCD sensor from e2v, and putting into Raptor’s proprietary PentaVac vacuum enclosure a..

Description

Cooled 4MP High Energy CCD - High Energy Cameras for both Imaging and Spectroscopy applications

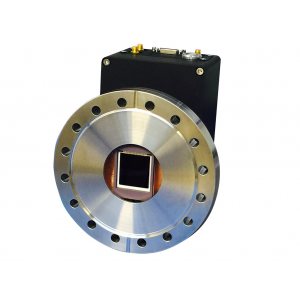

Introducing a high energy version one of the most sensitive CCD cameras in the World. Using a back-illuminated 4MP CCD sensor from e2v, and putting into Raptor’s proprietary PentaVac vacuum enclosure and cooling it to a delta of greater than -110°C, the Eagle XO is an open front detector with a range of flanges available.



The EAGLE XO camera features:



 - Open front end – CF152 (6”) flange for direct interfacing to vacuum chambers
 - Deep cooled using Thermoelectric cooler (TEC) – Minimize dark current and enable long exposure
 - Back Illuminated 4MP no coating – Optimizes sensitivity and large field of view imaging
 - 3.5um x 13.5um pixel – Enables ultra sharp image resolution and high dynamic range


Specifications:



Sensor E2V CCD42-40 Back Illuminated, AIMO or E2V CCD42-40 Back Illuminated Deep Depleted, AIMO
Active Pixel Array Size (2048 × 2048) pixels
Pixel Size 13.5μm × 13.5μm
Active Area 27.65mm × 27.65mm (39.10mm diagonal)
Binning Programmable, up to 64×64 pixels
Full Well Capacity 100 000 e-
Non-Linearity <1%
Readout Noise @ 75kHz pixel readout rate, 2.3 e- rms, @ 2MHz pixel readout rate, 9.0 e- rms
Peak Quantum Efficiency (QE) >90%
Spectral Response 1.2eV to 20KeV
Dark Current @ -60°C 0.005 e-/pixel/second
Cooling Active, ΔT > 90°C
Cooling Method Air / Liquid
Flange CF152 (6”)
Synchronization Trigger IN and OUT – TTL compatible
Digital Output 16-bit
Data Interface Cameralink (base)
Power Supply 12V DC ±10%
Total Power Consumption TEC OFF < 9W, TEC ON < 60W
Operating Temperature Range -20°C to +55°C
Storage Temperature Range -40°C to +70°C
Dimensions 141mm x 133mm x 110mm
Weight (excluding lens) 5.0kg [11lb]

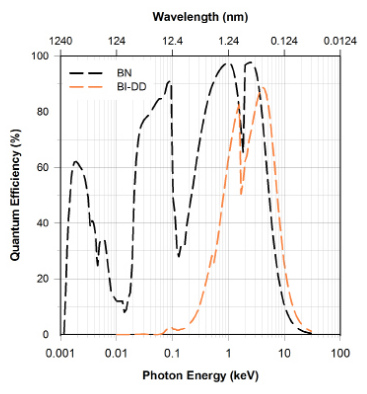

Quantum Efficiency

Quantum Efficiency



Applications

X-ray imaging
X-ray microscopy
Thin films and nanofibers
X-ray plasma diagnostics
Holography and lithography


Datasheet








Raptor Photonics has developed a series of camera platforms for use in the X-Ray detection market, offering either direct or indirect detection. A range of sensors can be incorporated into these platforms to address both imaging and spectroscopy applications, enabling photon detection from VUV (<5eV) through to hard X-Ray (>50keV).



Using existing CCD, EMCCD and CMOS core engines Raptor Photonics can now manufacture detection solutions with multiple interfaces to the sampling environment, including:



Various entrance windows / ambient light barriers, such as Beryllium or Aluminium.
Vacuum or Non-vacuum mounting flanges.
Fibre-optic coupled configurations to interface to additional components with a fibre-optic output, such as scintillator plates, streak tubes or MCPs.


If you have any VUV / X-Ray detection requirements, please contact us
