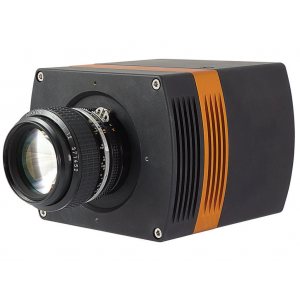

Eagle V CCD -90°C 4MP Scientific CCD

  • Manufactured by: Raptor Photonics

Quick Overview

One of the most sensitive CCD cameras in the World. Using a back-illuminated 4MP CCD sensor from e2v, and putting into Raptor’s proprietary PentaVac vacuum enclosure and cooling it to -90°C, the Eagle V is the perfect camera for long exposures. Offering low read noise of <2.3e- unbinned and binning options up to 64×64, the Eag..

Description

One of the most sensitive CCD cameras in the World. Using a back-illuminated 4MP CCD sensor from e2v, and putting into Raptor’s proprietary PentaVac vacuum enclosure and cooling it to -90°C, the Eagle V is the perfect camera for long exposures. Offering low read noise of <2.3e- unbinned and binning options up to 64×64, the Eagle also offers dual read-out rates of 75kHz and 2MHz.



Key Features


Lifetime vacuum guarantee – Protection and integrity of the sensor
Extremely low dark current – Deep cooled to greater than -110°C delta enables long exposure times
Back illuminated 4MP sensor from e2v – Enables large field of view imaging
13.5µm x 13.5µm pixels – Enables ultra sharp image resolution
High QE: >90% @ 525nm and 50% @ 380nm & 920nm– Optimum photon collection



Specifications

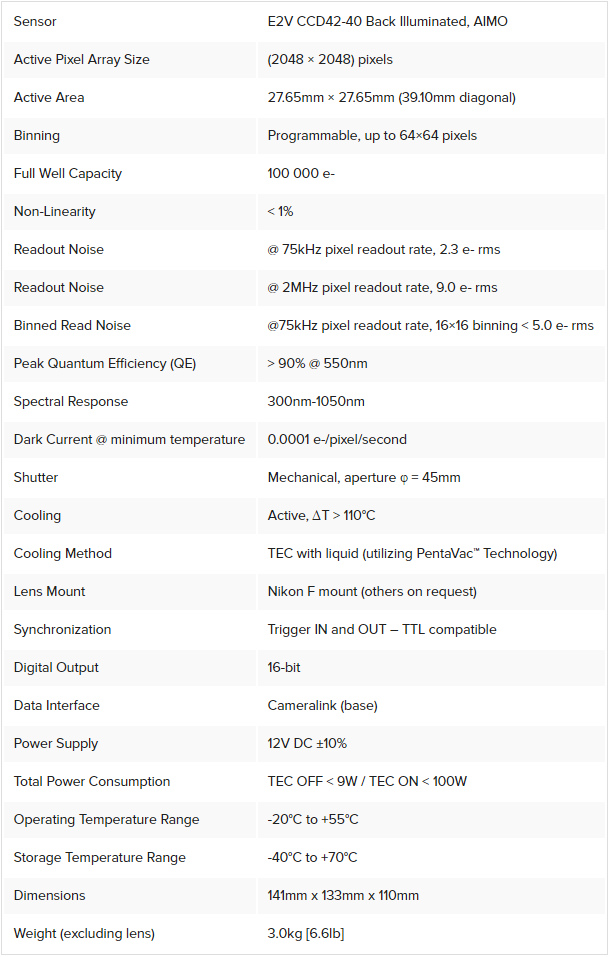

Eagle camera specifications

Datasheet
