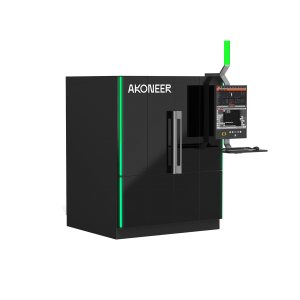

High precision laser micro machining workstation - AKO 300

  • Manufactured by: Akoneer

Quick Overview

High precision laser micro machining workstation with working area of 300x300x200 mm. In a standard configuration it's equipped with femtosecond laser, high accuracy galvo scanner and machine vision. Our flexible platform allows easy customization of the configuration.





..

Contact us

Description

High precision laser micro machining workstation with working area of 300x300x200 mm. In a standard configuration it's equipped with femtosecond laser, high accuracy galvo scanner and machine vision. Our flexible platform allows easy customization of the configuration.





PRODUCT DETAILS


SURFACE QUALITY & PRECISION


- Equipped with world leading 40W femtosecond laser source for the best surface finish

- High accuracy positioning stages and galvo scanners assures highest accuracy and part-to-part repeatability

- Integrated machine vision and calibration tools allows automated precision machining



UNMATCHED FLEXIBILITY


- AKO 300 can be configured with multiple wavelengths, fixed beam and galvo scanner optics to match your application requirement

- Software platform allows performing different machining processes on the same machine

-  AKO 300 can be equipped with gimbal for 5 axis + 3D galvo scanner machining of 3D shapes



EASY TO USE


- 2D and 3D CAD models can be imported directly into machine software

- Integrated machine vision provides instant quality inspection for process tuning

- 3D surface profiler can be integrated as an option, for all-in-one process development tool



APPLICATIONS




SSAIL
High-resolution conductive traces can be formed on polymers, glass, ceramics, silicon and other dielectric materials. Trace width can go below 5 µm.		   DRILLING
Precise drilling of holes in a variety of materials, ranging from glass and plastics to metals and ceramics.

LASER ETCHING
Ultrafast lasers are a great tool for selective material etching with low surface roughness.		   CUTTING
Laser cutting of various materials with micron level accuracy.





SPECIFICATIONS



  Standard configuration Options

Laser source DPSS femtosecond laser Fiber femtosecond laser, fiber nanosecond laser, multiple wavelengths

Average laser power 40 W 10 - 200 W

Positioning system XYZ linear stages, 2D galvo scanner XYZ1Z2 AB stages 3D galvo scanner Synchronized stages + galvo scanner motion 5 axis galvo scanner for 0 taper cutting

Travel range 300x300x200 mm

Machine vision Integrated machine vision with automatic pattern recognition 3D surface profiler




Ask a question about the High precision laser micro machining workstation - AKO 300





Manufacturer Informations

Akoneer

    AKONEER is a Lithuanian designer and manufacturer of laser micromachining systems for industrial and scientific applications.

    Workstations utilize laser sources and advanced beam steering to achieve micrometer-scale precision and repeatability for cutting, drilling, micro-milling, welding, isolating, and intra-volume marking..
