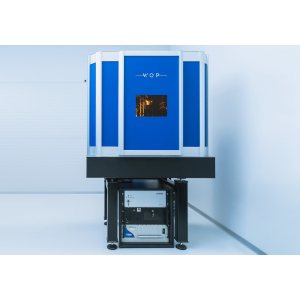

FemtoLAB - All-in-one R&D platform for laser micromachining

  • Manufactured by: WOP - Workshop Of Photonics

Quick Overview

FemtoLAB is a femtosecond laser micromachining workstation. A perfect choice for scientific laboratories and R&D centers requiring custom solutions for various tasks.

FemtoLAB laser workstation offers combined laser micromachining processes at a submicron resolution and can perform a variety of applications.



..

Contact us

Description

FemtoLAB is a femtosecond laser micromachining workstation. A perfect choice for scientific laboratories and R&D centers requiring custom solutions for various tasks.

FemtoLAB laser workstation offers combined laser micromachining processes at a submicron resolution and can perform a variety of applications.



Key applications:

  • Surface and volume micro- and nano- structuring
  • Femtosecond laser ablation (FSLA)
  • Laser grooving
  • Multiphoton polymerization (MPP) | direct laser writing (DLW)
  • Laser cutting & drilling
  • Uniquely, the system is compatible not only with planar samples but supports optical fibers machining as well.



Laser workstation technical specifications



Parameter Value
Recommended materials All materials: glass, sapphire, silicon, ceramics, metal, plastic, optical fibers etc.
Laser High power ultrashort pulse IR, Green, UV laser
Optical path selection Automated
Samples size Compatible with up to 160 mm x 160 mm designs
Smallest feature size 200 nm
Positioning system XYZ mechanical axes, positioning accuracy +- 0.3 μm featuring continuous wafer level patterning
Scanning system Galvo system for all laser wavelengths
Vision Real-time visualization and positioning camera with feature recognition
Metrology Integrated microscope
Sample handling Manual with automatic alignment
Holder Sample holder for flat structures (vacuum suction based) with additional holder for optical fibers
Fume extraction system Included
Accessories Power control, polarization state control
Software Entire system control via single GUI.
Supported file formats – 2D/3D model import: STL, DXF, DWG, AMF, PLT, FAB
– Bitmap support: BMP, GIF, JPG, JPEG, PNG
– Text files as a table array: TXT, RTF, TEX
Construction Granite base with passive vibrations isolation, built on an optical table (optional stand-alone design)
Cooling Water-cooled laser, air-cooled system, and electrical cabinet
Dimensions, mm
(L x W x H)		 1500 x 1350 x 1400
Weight 1100 kg
Power supply 2x 220 VAC, 16 A
