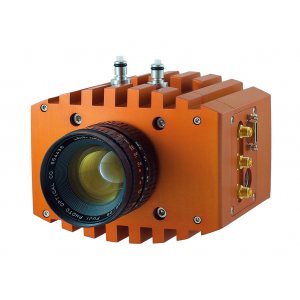

EMCCD Camera - Falcon III

  • Manufactured by: Raptor Photonics

Quick Overview

Vacuum cooled 1MP back-thinned frame-transfer EMCCD with 10μm pixels and UV / NIR response



The Falcon III EMCCD camera is based on e2v’s next generation CCD-351 back-thinned 1″ sensor. It combines high sensitivity, speed and resolution with QE up to..

Description

Vacuum cooled 1MP back-thinned frame-transfer EMCCD with 10μm pixels and UV / NIR response



The Falcon III EMCCD camera is based on e2v’s next generation CCD-351 back-thinned 1″ sensor. It combines high sensitivity, speed and resolution with QE up to 95%.



Key Features

Lower noise: <0.01e- read noise
Faster readout: x3 faster than previous generations
Higher EM gain: up to x5000 with lower voltages
Colder: cooling down to -100°C for minimal background events
Up to 95% QE from Virtual Phase sensor – Optimum Photon collection
Strong UV and NIR response – From 200nm through to 1100nm


Technical Specification


Sensor Type 1" Back Thinned Frame Transfer EMCCD
Active Pixel 1024 x 1024
Pixel Size 10µm x 10µm
Active Area 10.2mm x 10.2mm
Full Well Capacity 35,000 electrons
Shift Register Well Depth 200,000 electrons
Non-Linearity <1%
Readout noise <0.01 electrons with EM gain ON, <60 electrons with gain OFF
Full Resolution Frame Rate 34fps
Exposure Time 1ms to >1hr
Dark Current <0.0002e- / pix / sec
Digital Output Format 16 bit CameraLink (base configuration)
Peak Quantum Efficiency 95%
Spectral Response 200 - 1100nm
Cooling -100°C with +10°C coolant
Binning 1x1 up to 32x32
Lens Mount C-Mount
Synchronisation Trigger IN and OUT - TTL compatible
Power Supply 12V DC ±10%
Total power consumption <100W
Operating case temperature -20°C to +55°C
Storage Temperature -30°C to +85°C
Dimensions 129mm x 112mm x 94mm
Weight (no lens) <1.5Kg
