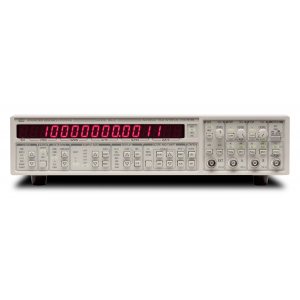

SR620 Time Interval and Frequency Counter

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

  • 25 ps single-shot time resolution
  • 1.3 GHz frequency range
  • 11-digit frequency resolution (1 s)
  • 0.001° phase resolution
  • Statistical analysis & Allan variance
  • Graphical output to XY scopes
  • Hardcopy to printers and plotters
  • GPIB and RS-232 interfaces
    • ..

Contact us

Description

  • 25 ps single-shot time resolution
  • 1.3 GHz frequency range
  • 11-digit frequency resolution (1 s)
  • 0.001° phase resolution
  • Statistical analysis & Allan variance
  • Graphical output to XY scopes
  • Hardcopy to printers and plotters
  • GPIB and RS-232 interfaces
  • Optional ovenized timebase

    The SR620 Time Interval Counter performs virtually all of the time and frequency measurements required in a laboratory or ATE environment. The instrument's single-shot timing resolution and low jitter make it the counter of choice for almost any application.


    SR620 Measurements

    The SR620 measures time interval, frequency, pulse-width, rise and fall time, period, phase and events. Time intervals are measured with 25 ps rms resolution, making the SR620 one of the highest resolution counters available. Frequency is measured from 0.001 Hz to 1.3 GHz, and a choice of gates ranging from 1 period to 500 seconds are provided. The SR620 delivers up to 11 digits of frequency resolution in a 1 second measurement. It's suitable for measurement applications ranging from short-term phase locked loop jitter, to long-term drift of atomic clocks. All measurement modes are supported by a wide variety of flexible arming and triggering options.
