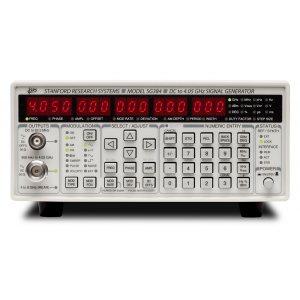

SG380 Series RF Signal Generators

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

OCXO or Rubidium Timebase

The new SG380 Series RF Signal Generators finally, high performance, affordable RF sources.

The SG380 Series RF Signal Generators use a unique, innovative architecture (Rational Approximation Frequency Synthesis) to deliver ultra-high frequency re..

Description

OCXO or Rubidium Timebase

The new SG380 Series RF Signal Generators finally, high performance, affordable RF sources.

The SG380 Series RF Signal Generators use a unique, innovative architecture (Rational Approximation Frequency Synthesis) to deliver ultra-high frequency resolution (1 μHz), excellent phase noise, and versatile modulation capabilities (AM, FM, ΦM, pulse modulation and sweeps) at a fraction of the cost of competing designs.

The standard models produce sine waves from DC to 2.025 GHz (SG382), 4.05 GHz (SG384) and 6.075 GHz (SG386). There is an optional frequency doubler (Opt. 02) that extends the frequency range of the SG384 and SG386 to 8.10 GHz. Low-jitter differential clock outputs (Opt. 01) are available, and an external I/Q modulation input (Opt. 03) is also offered. For demanding applications, the SG380 Series can be ordered with a rubidium timebase (Opt. 04).

  • DC to 4.05 GHz
  • 1 µHz resolution
  • AM, FM, PM and sweeps
  • OCXO timebase (std.)
  • -116 dBc/Hz SSB phase noise (20 kHz offset, f = 1 GHz)
  • Rubidium timebase (opt.)
  • Square wave clock outputs (opt.)
  • Analog I/Q inputs (opt.)
  • Ethernet, GPIB and RS-232 interfaces


Datasheet (1,5 Mo)

Ask a question about the SG380 Series RF Signal Generators





Manufacturer Informations

SRS Stanford Research Systems

    Formed in 1980, SRS is a privately held corporation which designs and manufactures high performance test equipment.
