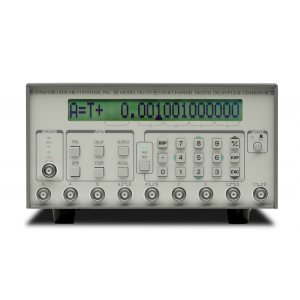

DG535 Digital Delay Generator / Pulse Generator

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

  • Four independent delay channels
  • Two fully-defined pulse channels
  • 5 ps delay resolution
  • 50 ps rms jitter
  • Adjustable amplitude and offset
  • Delays up to 1000 seconds
  • 1 MHz maximum trigger rate
  • Standard GPIB interface
  • Optional ±32 V output

Description

  • Four independent delay channels
  • Two fully-defined pulse channels
  • 5 ps delay resolution
  • 50 ps rms jitter
  • Adjustable amplitude and offset
  • Delays up to 1000 seconds
  • 1 MHz maximum trigger rate
  • Standard GPIB interface
  • Optional ±32 V output

The DG535 Digital Delay and Pulse Generator provides four precisely-timed logic transitions or two independent pulse outputs. The delay resolution on all channels is 5 ps, and the channel-to-channel jitter is less than 50 ps. Front-panel BNC outputs deliver TTL, ECL, NIM or variable level (-3 to +4 V) pulses into 50 W or high impedance loads. The high accuracy, low jitter, and wide delay range make the DG535 ideal for laser timing systems, automated testing, and precision pulse applications.

Datasheet (PDF file)

Ask a question about the DG535 Digital Delay Generator / Pulse Generator





Manufacturer Informations

SRS Stanford Research Systems

    Formed in 1980, SRS is a privately held corporation which designs and manufactures high performance test equipment.
