Stepper Motor Controllers

  • Manufactured by: Zaber Technologies

Quick Overview

The X-MCB1 stepper motor controller is designed with powerful, yet easy-to-use features. It can drive any bipolar stepper motor or actuator up to 2.5 A/phase with high resolution. Microstepping resolution of the drive can be set at any value between 1 and 256 microsteps per step, allowing easy customization and fine resolution movement. The cont..

Contact us

Description

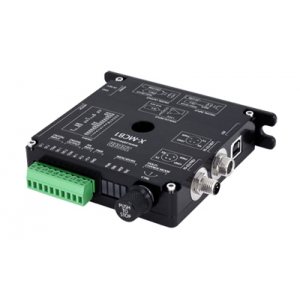

The X-MCB1 stepper motor controller is designed with powerful, yet easy-to-use features. It can drive any bipolar stepper motor or actuator up to 2.5 A/phase with high resolution. Microstepping resolution of the drive can be set at any value between 1 and 256 microsteps per step, allowing easy customization and fine resolution movement. The controller also includes isolated digital inputs and outputs, as well as analog inputs for interfacing with external systems.



An event-driven trigger system allows the device to be programmed for stand-alone operation based on I/O, time, or movement stimuli. An intuitive ASCII interface allows the user to easily communicate with the device through Zaber Console (our free software), as well as third party terminal programs.



The X-MCB1 is backwards-compatible with all of Zaber's existing T-Series and A-Series products. When daisy-chained with several units, the X-MCB1 can also share a single power supply with multiple X-Series products.


Controls any bipolar stepper motor or actuator up to 2.5A/phase with high resolution, customizable microstepping
Two isolated digital inputs, two isolated digital outputs, and two analog inputs
Intuitive ASCII protocol simplifies complex automation tasks
Designed for easy mounting to panels, breadboards, lab benches, and enclosures

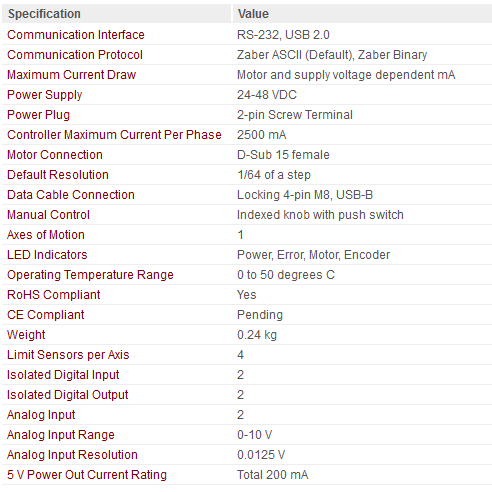

stepper controller one axis specification
