SR280 NIM Mainframe and Display

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

  • NIM compatible mainframe
  • 9 available slots
  • Analog, digital and bar graph meters

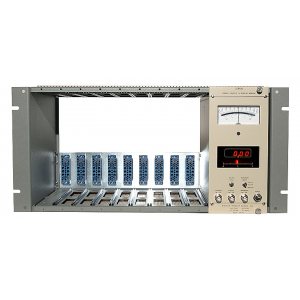

The SR280 is the Boxcar Averager System mainframe. The mainframe is NIM (Nuclear Instrumentation Module) compatible and has twelve slots. The three right-most slots are filled by the display module and unregulated power..

Description

  • NIM compatible mainframe
  • 9 available slots
  • Analog, digital and bar graph meters

The SR280 is the Boxcar Averager System mainframe. The mainframe is NIM (Nuclear Instrumentation Module) compatible and has twelve slots. The three right-most slots are filled by the display module and unregulated power supplies, leaving nine slots for other NIM modules. The DC power supply regulators are mounted on a heat sink on the rear of the mainframe.

The display module features three types of meters. The analog meter is for "peaking-up" an experimental signal. The digital voltmeter provides a numeric readout. The "Digital Hold" button may be used to hold the digital meters reading. A 20-segment bar graph display may be used to show rapidly changing data.
